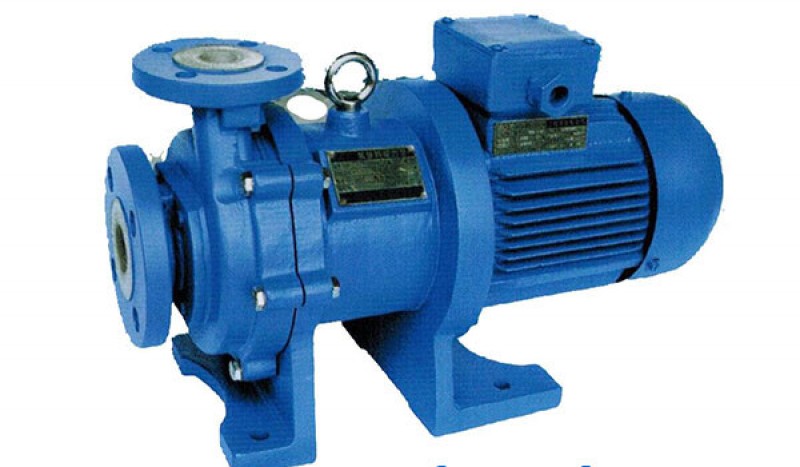

CQB-F Series Fluoroplastic Magnetic Drive Pump
China CQB-F Series Fluoroplastic Magnetic Drive Pump:
The driving device is directly mounted on the motor shaft with active magnet coupling, and the pump chamber is completely closed. The impeller with magnet on the pump shaft is driven to rotate indirectly through magnetic coupling, which is compact in structure, safe and energy-saving.
CQB-F Series Fluoroplastic Magnetic Drive Pump
Main Technical Data
| Model |
Capacity m³/h |
Head m |
Rev speed r/min |
Motor power KW |
| CQB16-12-50F | 0.6 | 2 | 2900 | 0.025 |
| CQB15-15-65F | 0.8 | 3.2 | 2900 | 0.18 |
| CQB20-15-75F | 1.6 | 7 | 2900 | 0.18 |
| CQB25-20-100F | 2.5 | 10.5 | 2900 | 0.37 |
| CQB32-20-110F | 5.5 | 13 | 2900 | 0.55 |
| CQB40-25-120F | 6.3 | 15 | 2900 | 0.75 |
| CQB40-40-100F | 6 | 11 | 2900 | 0.55 |
| CQB40-40-125F | 6.5 | 17.5 | 2900 | 1.1 |
| CQB50-32-125F | 12 | 20 | 2900 | 1.5 |
| CQB50-32-125FL | 12.5 | 20 | 2900 | 2.2 |
| CQB50-32-160F | 12.5 | 32 | 2900 | 4 |
| CQB50-32-200F | 12.5 | 50 | 2900 | 7.5 |
| CQB65-50-150F | 20 | 25 | 2900 | 4 |
| CQB65-50-160F | 17.5 | 32 | 2900 | 4 |
| CQB65-50-180F | 8 | 38 | 2900 | 5.5 |
| CQB65-40-200FL | 25 | 50 | 2900 | 11 |
| CQB80-65-160FL | 50 | 32 | 2900 | 11 |
| CQB80-50-200FL | 50 | 50 | 2900 | 18.5 |
| CQB100-80-160FL | 100 | 32 | 2900 | 22 |
| Also have bigger pumps, pls contact us for more information. | ||||
