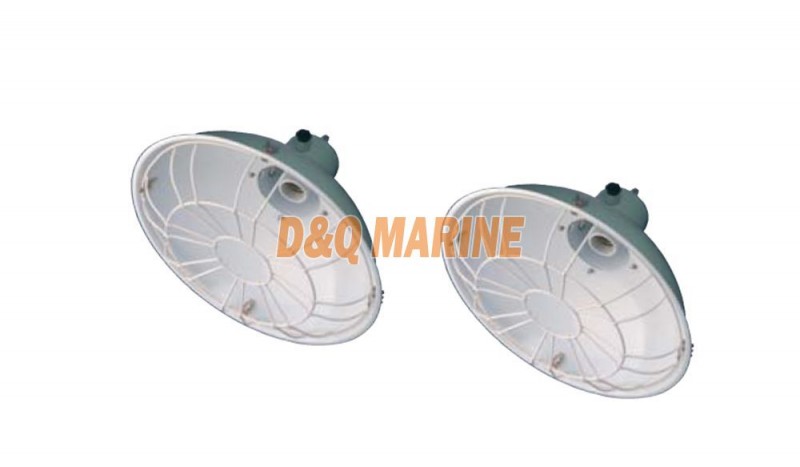

CGD3-3 Pendant Light
The scope of application
Used for movable illumination in cargo tank of ship
Products feature
1. The shell adopts good quality steel by mold pressing, with metal protective guard, fit for large area illumination.
2. It can be equipped with incandescent lamp and fluorescent self-ballast mercury lamp.
3.Cable outside diameter is Φ10～Φ12mm.
Adopt standard and product certification
1 .Conform to GB7000.201 standard.
2. Conform to GB7000.1 standard.
3. Conform to RULES FOR CLASSIFICATION OF SEA-GOING STEEL SHIPS.
Installation
CGD3-3 Pendant Light Specification
| Type | CGD3-3 | |
| Voltage(V) | 110/220 | |
| Lamp Holder | E40 | |
| Light source | Fluorescent Self-ballast Mercury Lamp | |
| Power(W) | 300/500 | |
| Protection Class | IP20 | |
| Weight(kg) | 0.7 | |
