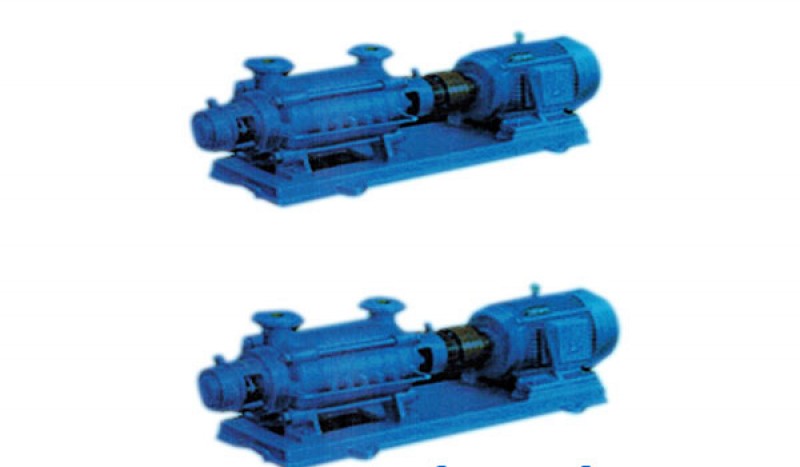

CDWL Series Marine Horizontal Several Stages Centrifugal Pump:
China CDWL Series Marine Horizontal Several Stages Centrifugal Pump:
CDWL series marine horizontal several stages centrifugal pump is a high temperature, intermediate pressure and little capacity kind of boiler feed pump. This product is widely used to fire-fighting,cooling,boiler feed water,desalination of sea water,deck wash warehouse and living water supply system.It can transport seawater,living water and similar liquid which temperature is not more than 130℃.
Construction of pump
Main Technical Data
| Model |
Flow rate Q m³/h |
Lift H (m) |
Rev speed r/min |
Motor power (KW) |
| 40CDWL3 | 6.2 | 72.4 | 2900 | 5.5 |
| 40CDWL4 | 6.2 | 96.6 | 2900 | 7.5 |
| 40CDWL5 | 6.2 | 120 | 2900 | 7.5 |
| 50CDWL2 | 12.5 | 103 | 2900 | 11 |
| 50CDWL3 | 12.5 | 155 | 2900 | 15 |
| 50CDWL4 | 12.5 | 206 | 2900 | 22 |
| 65CDWL2 | 25 | 159 | 2900 | 30 |
| 65CDWL3 | 25 | 239 | 2900 | 45 |
| 65CDWL4 | 25 | 318 | 2900 | 55 |
| 80CDWL2 | 50.4 | 164 | 2900 | 55 |
| 80CDWL3 | 50.4 | 246 | 2900 | 75 |
| 80CDWL4 | 50.4 | 329 | 2900 | 110 |
| 100CDWL2 | 102 | 165 | 2900 | 90 |
| 100CDWL3 | 102 | 248 | 2900 | 132 |
| 100CDWL4 | 102 | 331 | 2900 | 160 |
| 65CDWL4 | 30 | 457 | 3540 | 90 |
| 65CDWL5 | 30 | 571 | 3540 | 110 |
| 65CDWL6 | 30 | 685 | 3540 | 132 |
| 80CDWL2 | 60.4 | 63.5 | 3540 | 90 |
| 80CDWL3 | 60.4 | 95.2 | 3540 | 132 |
| 80CDWL4 | 60.4 | 134 | 3540 | 160 |
| Also have bigger pumps, pls contact us for more information. | ||||
CDWL Series Marine Horizontal Several Stages Centrifugal Pump Performance
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
