Synchronous Electro-Hydraulic Jack
China Synchronous Electro-Hydraulic Jack:

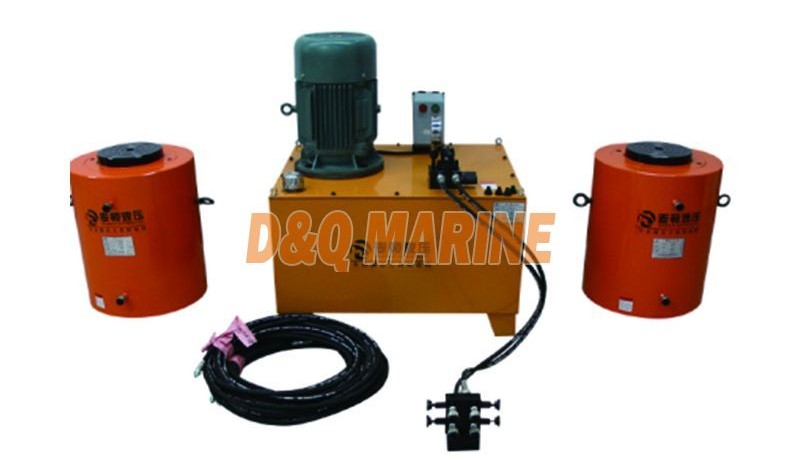

Synchronous Electro-Hydraulic Jack
Product features:
Double acting, hydraulic reset.
Piston rod is electroplated with 40Cr metal layer to increase surface brightness and hardness to prevent air corrosion.
The piston and guide ring are made of welded copper,which is more wear-resistant.
Special guide ring design can withstand eccentric loads up to 5%of the rated load capacity of the jack.
Equipped with a dust ring to prevent dust from entering the cylinder,all models include quick connectors and dust caps. Quick connectors contain layer protection.
There are as many as 13 seals inside the cylinder, which can effectively ensure the sealing performance and prolong the service life.
| Model | Capacity T | Height mm | Stroke mm | Max Height mm | Outside mm | Diameter mm | Diameter mm | Pressure Mpa | Weight kg | Electric pump station | |||
| TDYG 50/100 | 50 | 225 | 100 | 325 | 127 | 70 | 100 | 63Mpa | 35 | 50T-200T Optional: 0.55kW 0.75kW 1.5kW 3kW 4kW 5.5kW | |||
| TDYG 50/160 | 285 | 160 | 445 | 39 | |||||||||
| TDYG 50/200 | 325 | 200 | 525 | 46 | |||||||||
| TDYG 50/300 | 425 | 300 | 725 | 48 | |||||||||
| TDYG 50/500 | 625 | 500 | 1125 | 140 | 63 | ||||||||
| TDYG 100/100 | 100 | 250 | 100 | 350 | 180 | 100 | 140 | 63Mpa | 58 | ||||
| TDYG 100/160 | 310 | 160 | 470 | 63 | |||||||||
| TDYG 100/200 | 350 | 200 | 550 | 78 | |||||||||
| TDYG 100/300 | 450 | 300 | 750 | 96 | |||||||||
| TDYG 100/500 | 650 | 500 | 1150 | 194 | 130 | ||||||||
| TDYG 150/100 | 150 | 260 | 100 | 360 | 219 | 125 | 180 | 63Mpa | 58 | ||||
| TDYG 150/160 | 320 | 160 | 480 | 69 | |||||||||
| TDYG 150/200 | 360 | 200 | 560 | 86 | |||||||||
| TDYG 150/300 | 460 | 300 | 760 | 103 | |||||||||
| TDYG 150/500 | 660 | 500 | 1160 | 245 | 255 | ||||||||
| TDYG 200/100 | 200 | 285 | 100 | 385 | 273 | 150 | 200 | 63Mpa | 96 | ||||
| TDYG 200/160 | 345 | 160 | 505 | 103 | |||||||||
| TDYG 200/200 | 385 | 200 | 585 | 116 | |||||||||
| TDYG 200/300 | 485 | 300 | 785 | 161 | |||||||||
| TDYG 200/500 | 685 | 500 | 1185 | 221 | |||||||||
| TDYG 320/100 | 320 | 310 | 100 | 410 | 330 | 180 | 250 | 63Mpa | 196 | 1.5kW 3kW 4kW 5.5kW | |||
| TDYG 320/160 | 370 | 160 | 530 | 240 | |||||||||
| TDYG 320/200 | 410 | 200 | 610 | 258 | |||||||||
| TDYG 320/300 | 510 | 300 | 810 | 311 | |||||||||
| TDYG 320/500 | 710 | 500 | 1210 | 352 | 456 | ||||||||
| TDYG 400/100 | 400 | 355 | 100 | 455 | 380 | 200 | 290 | 63Mpa | 198 | 3kW 4kW 5.5kW 7.5kW | |||
| TDYG 400/160 | 415 | 160 | 575 | 231 | |||||||||
| TDYG 400/200 | 460 | 200 | 660 | 264 | |||||||||
| TDYG 400/300 | 555 | 300 | 855 | 367 | |||||||||
| TDYG 400/500 | 755 | 500 | 1255 | 395 | 456 | ||||||||
