Single Acting Multi-Section Jack
China Single Acting Multi-Section Jack:

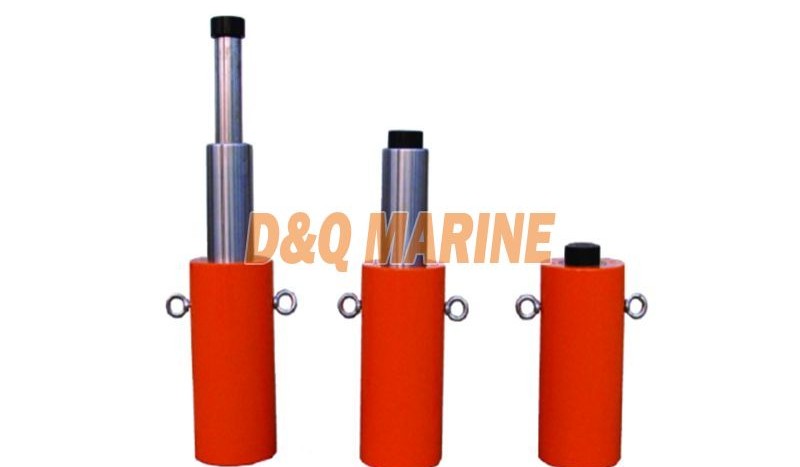

Single Acting Multi-Section Jack
Product features:
The single-acting multi-section jack is carefully designed by the engineers of our factory on the basis of the thin top.It can be placed on the ground with a relatively short space. Within the effective height of the body, the stroke of the top is increased, so that the heavy objects can be lifted. Higher, more convenient to use. Products are widely used in the installation and maintenance of large and medium-sized machinery and equipment in petroleum,chemical, electric power, pharmaceutical, metallurgy. steel, vehicles, bridges and other industries. They are ideal and necessary tools for installation and maintenance workers. A large and medium-sized enterprise.
| Ability to work | mm Level 1 Stroke | mm Level 2 Stroke | mm outer diameter | mm Height | ||||
| MSJ-5T | 42 | 42 | 65 | 70 | ||||
| MSJ-10T | 48.6 | 48.6 | 70 | 81 | ||||
| MSJ-20T | 55.2 | 55.2 | 108 | 92 | ||||
| MSJ-30T | 62 | 62 | 127 | 103 | ||||
| MSJ-50T | 75 | 75 | 146 | 124 | ||||
| MSJ-100T | 96 | 96 | 219 | 156 | ||||
