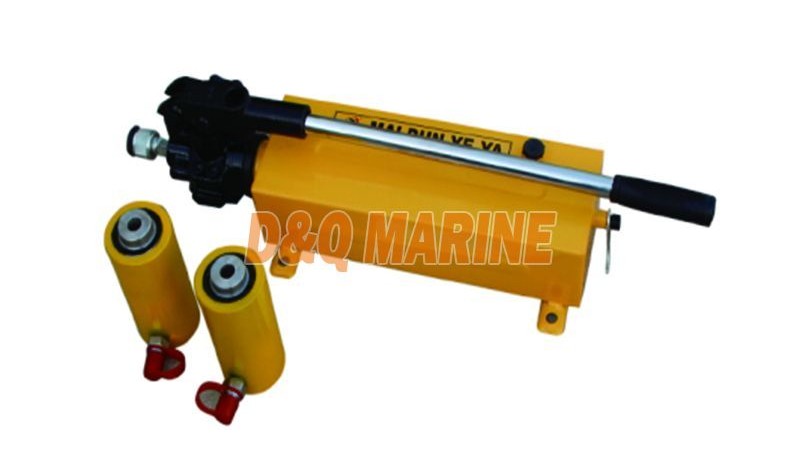

Single Acting Jack - Image 1

Single Acting Jack

Category: Marine Machine Tool

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

Request a Quote

We can supply according to your requirement.

Single Acting Jack

China Single Acting Jack:

Single Acting Jack

Product features:

Can be used anywhere.

Single-acting design, spring return,easy to use.

High-strength alloys are durable.

Equipped with a dust ring to reduce pollution and extend the life of the hydraulic cylinder.

Some models have handles for easy movement.

All models include quick connectors and dust caps.

Model	T Capacity	mm Stroke	mm Height	mm Max Heigh	mm Diameter	mm rod diameter		mm Diameter	kg Weight
Model	T Capacity	mm Stroke	mm Height	mm Max Heigh	mm Diameter	mm rod diameter		mm Diameter	kg Weight
RC-50	5	16	41	57	40	36		55	1
RC-51		25	90	115				55	1
RC-53		76	145	221				55	1.5
RC-55		127	196	323				55	1.9
RC-57		178	253	431				55	2.4
RC-59		232	304	536				55	2.8
RC-101	10	25	80	105	45	41		60	1.8
RC-102		54	111	165				60	2.3
RC-104		105	161	266				60	3.3
RC-106		156	238	394				60	4.4
RC-108		203	288	491				60	5.4
RC-1010		257	339	596				60	6.4
RC-1012		305	390	695				60	6.8
RC-1014		356	441	797				60	8.2
RC-151	15	25	104	129	55	46		70	3.3
RC-152		51	129	180				70	4.1
RC-154		102	180	282				70	5
RC-156		152	252	404				70	6.8
RC-158		203	302	505				70	8.2
RC-1510		254	353	607				70	9.5
RC-1512		305	404	709				70	10.9
RC-1514		356	455	811				70	11.8
RC-251	25	25	120	145	70	62		90	5.9
RC-252		51	145	196				90	6.4
RC-254		102	196	298				90	8.2
RC-256		159	253	412				90	10
RC-258		210	304	514				90	12.3
RC-2510		260	355	615				90	14.1
RC-2512		311	405	716				90	16.3
RC-2514		362	456	81				90	17.1
RC-308	30	210	337	547	80	65		104	18.1
RC-502	50	51	136	187	100	80		127	15
RC-504		102	187	289				127	19.1
RC-506		159	243	402				127	23.2
RC-5013		337	421	758				127	37.7
RC-756	75	156	246	402	125	90		160	29.5
RC-7513	75	334	452	786	125	90		160	59
RC-1006	100	168	267	435	140	100		180	59
RC-10010	100	260	359	619	140	100		180	72.6
