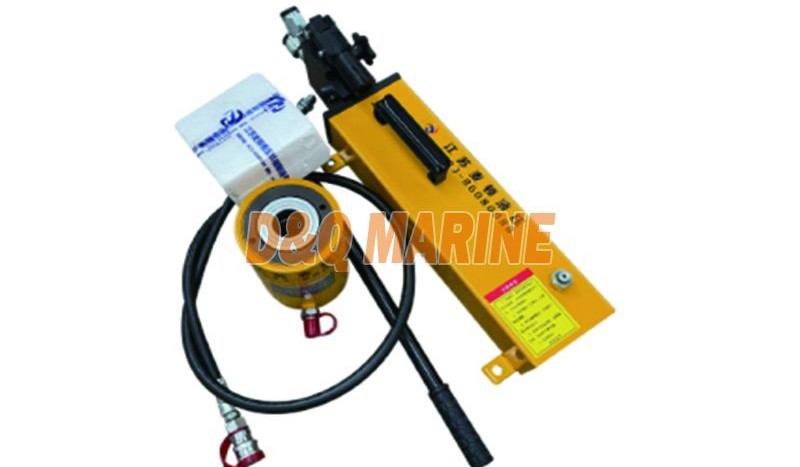

Single Acting Hollow Jack
China Single Acting Hollow Jack:
Single Acting Hollow Jack
Product features:
Single-acting design, spring return,easy to use.
Hollow plunger design can be used for both pull and push.
Painted surface for greater corrosion resistance.
Equipped with a dust ring to reduce pollution and extend the life of the hydraulic cylinder.
All models include quick connectors and dust protection.
| Model | T Capacity | mm Stroke | mm Height | mm Max Heigh | mm Diameter | mm Diameter | kg Weight |
| RCH-120 | 12 | 8 | 56 | 63 | 70 | 19.6 | 1.5 |
| RCH-121 | 12 | 41 | 121 | 162 | 70 | 19.6 | 2.8 |
| RCS-1211 | 12 | 41 | 121 | 162 | 70 | 19.6 | 2.8 |
| RCH-123 | 12 | 76 | 184 | 260 | 70 | 19 | 4.4 |
| RCH-202 | 20 | 51 | 162 | 213 | 99 | 26.9 | 7.7 |
| RCH-206 | 20 | 155 | 306 | 461 | 99 | 26.9 | 14.1 |
| RCH－302 | 30 | 63 | 179 | 242 | 114 | 33.3 | 10.9 |
| RCH-306 | 30 | 156 | 330 | 486 | 114 | 33.3 | 21.8 |
| RCH-603 | 60 | 76 | 248 | 324 | 159 | 53.8 | 28.1 |
| RCH-606 | 60 | 152 | 324 | 476 | 159 | 53.8 | 35.4 |
| RCH-1003 | 100 | 76 | 254 | 330 | 213 | 79 | 59.9 |
