RMC Series Volume Synchronous Jacking System-Economical
China RMC Series Volume Synchronous Jacking System-Economical:

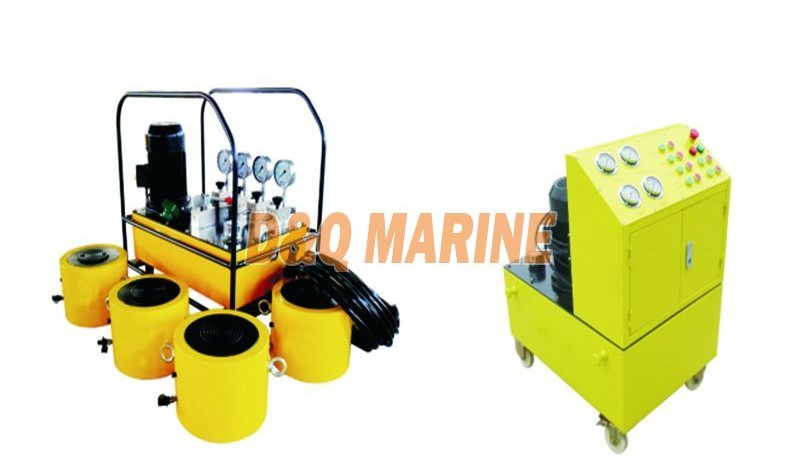

RMC Series Volume Synchronous Jacking System-Economical
System features:
The control precision is high, the synchronous precision can reach 0.5mm, and the synchronous jacking and descending can be completely controlled.
The product is flexible and can be controlled flexibly according to different working conditions,oil cylinder tonnage and quantity and jacking accuracy.
Each control point is relatively independent and can be adjusted independently to one or several control points without interference between the control points.
The system adopts modular design, which can control 4,8,12,16 ,and can be extended to 99 points online.
According to the working condition,the access displacement sensor and pressure sensor can be selected to monitor the system working condition in real time.
| Sync Points | Model | Nominal Pressure | Nominal Capcaity | Oil Tank | 380v,50Hz) | Weight | ||||
| Mpa | L/min | L | Kg | |||||||
| 2 | PMCDO2D | 70 | 0.5x2 | 100 | 1.5KW | 125 | ||||
| 2 | PMCDO2S | 70 | 0.5x2 | 100 | 1.5KW | 125 | ||||
| 4 | PMCDO4D | 70 | 0.5x4 | 100 | 2.2KW | 125 | ||||
| 4 | PMCDO4S | 70 | 0.5x4 | 100 | 2.2KW | 125 | ||||
| 8 | PMCDO8D | 70 | 0.5x8 | 100 | 5.5KW | 125 | ||||
| 8 | PMCDO8S | 70 | 0.5x8 | 100 | 5.5KW | 125 | ||||
| 12 | PMCD12D | 70 | 0.5x12 | 100 | 11KW | 150 | ||||
| 12 | PMCD12S | 70 | 0.5x12 | 100 | 11KW | 150 | ||||
Rated flow can be customized according to customer needs.
Tank volume can also be customised accroding to customer needs.
Motor can be selected accroding to the requirements of variable speed motor( VFDM).
