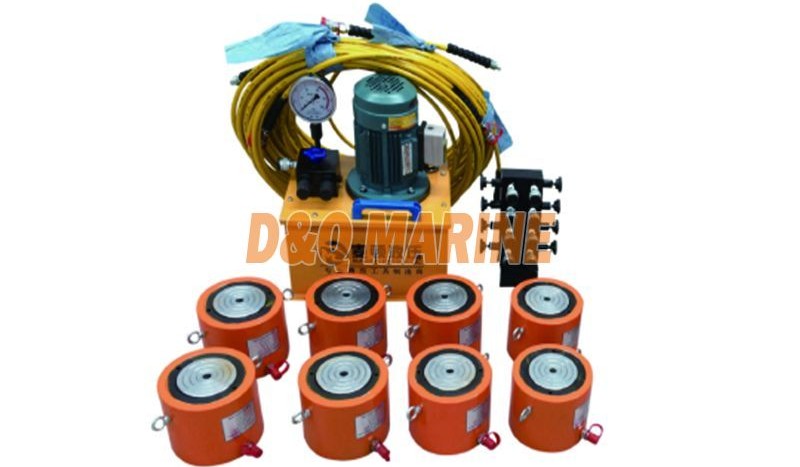

Low Profile Synchronized Jack
China Low Profile Synchronized Jack:
Low Profile Synchronized Jack
Product features:
The RCS thin synchronous jacks produced by our company are designed with a safety pressure maintaining device and a built -in pressure relief valve to prevent overload, so as to protect the jack for safe operation. And four sets of stop valves are designed, which can control the synchronous lifting and lowering of the jack at any time. The connection of the device adopts high-pressure hose and quick joint connection, which is fast to use and overcomes the shortcomings of oil leakage of traditional fast joints. It is mainly used in electricity, construction, Equipment installation,lifting and dismantling operations in machinery manufacturing , mining, railway bridges,shipbuilding and other industries.
| Model | Sync top model | Capacity T | Stroke mm | Diameter mm | Height mm | Max Height mm | Diameter mm | Weight Kg | ||
| RCS-101 | TRCS-101 | 10 | 38 | 45 | 88 | 126 | 70 | 4.1 | ||
| RCS-201 | TRCS-201 | 20 | 44 | 63 | 99 | 143 | 80 | 5 | ||
| RCS-302 | TRCS-302 | 30 | 62 | 80 | 118 | 180 | 95 | 6.8 | ||
| RCS-502 | TRCS-502 | 50 | 60 | 100 | 122 | 182 | 127 | 10.9 | ||
| RCS-1001 | TRCS-1001 | 100 | 45 | 140 | 120 | 165 | 180 | 20 | ||
| RCS-1002 | TRCS-1002 | 100 | 57 | 140 | 141 | 198 | 180 | 22.7 | ||
| RCS-1520 | TRCS-1520 | 150 | 30 | 180 | 120 | 150 | 230 | 30 | ||
| RCS-1530 | TRCS-1530 | 150 | 45 | 180 | 140 | 185 | 230 | 35 | ||
| RCS-2002 | TRCS-2002 | 200 | 60 | 200 | 162 | 222 | 250 | 55 | ||
