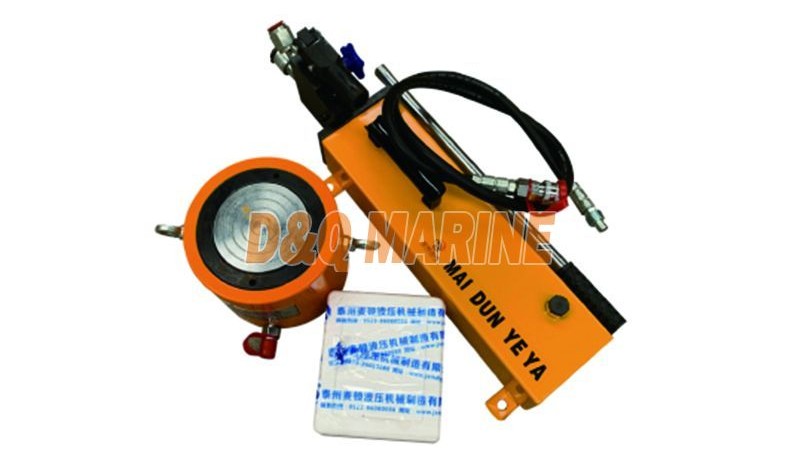

Low Profile Hydraulic Jack
China Low Profile Hydraulic Jack:
Low Profile Hydraulic Jack
Product features:
Single acting,spring return.
Dust ring design reduces pollution and prolongs service life.
Lightweight and compact design for tight spaces.
The piston is welded with copper to increase wear resistance; the piston rod is electroplated with 40 Cr to increase hardness and prevent air corrosion.
This product is widely used in electric power,chemical, steel,bridge, machinery and other enterprises, and exerts its infinite power.
In the use of bridge replacement bearings, the cost performance is superior to imported brands.
| Model | Sync top model | Capacity T | Stroke mm | Diameter mm | Height mm | Max Height mm | Diameter mm | Weight Kg | ||
| RCS-101 | TRCS-101 | 10 | 38 | 45 | 88 | 126 | 70 | 4.1 | ||
| RCS-201 | TRCS-201 | 20 | 44 | 63 | 99 | 143 | 80 | 5 | ||
| RCS-302 | TRCS-302 | 30 | 62 | 80 | 118 | 180 | 95 | 6.8 | ||
| RCS-502 | TRCS-502 | 50 | 60 | 100 | 122 | 182 | 127 | 10.9 | ||
| RCS-1001 | TRCS-1001 | 100 | 45 | 140 | 120 | 165 | 180 | 20 | ||
| RCS-1002 | TRCS-1002 | 100 | 57 | 140 | 141 | 198 | 180 | 22.7 | ||
| RCS-1520 | TRCS-1520 | 150 | 30 | 180 | 120 | 150 | 230 | 30 | ||
| RCS-1530 | TRCS-1530 | 150 | 45 | 180 | 140 | 185 | 230 | 35 | ||
| RCS-2002 | TRCS-2002 | 200 | 60 | 200 | 162 | 222 | 250 | 55 | ||
