/photo/8-Strand-Polypropylene-Rope.jpg

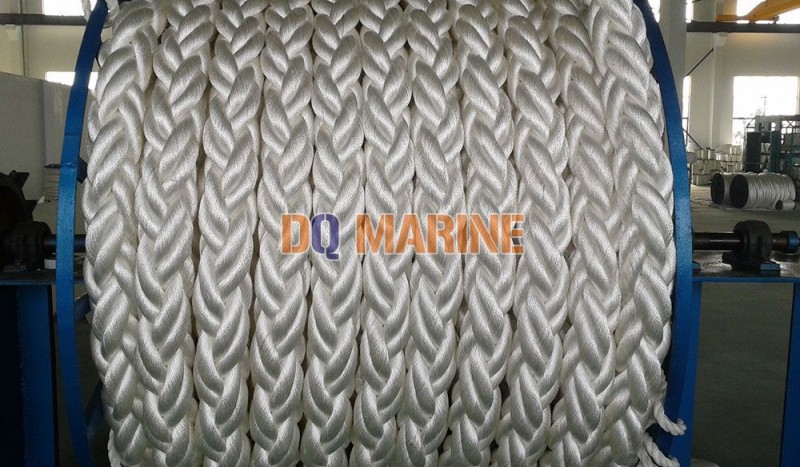

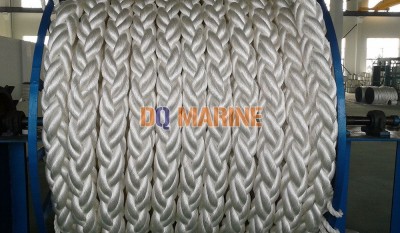

8 Strand Polypropylene Rope
Category:
Mooring Rope
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
8 Strand Polypropylene Rope:
China 8 Strand Polypropylene Rope:

The product has advantages of reasonable braided structure,scientific technology,high strength,low elongation,wearing resistance,anti-corrosion and simple operation. It is particularly suitable to make large-scale ropes and cables as well as anti-static ropes therefore they are well received by customers.

The products are mainly used in fields of shipbuilding,ocean transportation,national defense and military industry,sea petroleum and harbor operation etc.

Main Performance:
Material Polyamide Multifilament Polyamide yarn Polypropylene multifilament Polypropylene Polyester Polypropylene and Polyester mixed
Density 1.14
non floating
1.14
non floating
0.91
floating
0.91
floating
1.27
non floating
0.95
floating
Melting point 215℃ 215℃ 165℃ 165℃ 260℃ 165℃/260℃
Abrasion resistance Very good Very good Medium Medium Good Good
UV resistance Very good Very good Medium Medium Good Good
Temperature resistance 120℃ Max 120℃ Max 70℃ Max 70℃ Max 120℃ Max 80℃ Max
Chemical resistance Very good Very good Good Good Good Good
Specification:

Chart 1

Specification Polyamide Multifilament Polyamide Yarn
Diameter Circumference Linear Density(Ktex) Breaking Strength(KN) Linear Density(Ktex) Breaking Strength(KN)
20 2 1/2“ 247 79.2 247 66.7
24 3“ 355 12 355 96.3
28 3 1/2“ 484 149 484 127
32 4“ 632 192 632 161
36 4 1/2“ 800 240 800 200
40 5“ 987 294 987 241
44 5 1/2“ 1190 351 1190 289
48 6“ 1420 412 1420 338
52 6 1/2“ 1670 479 1670 393
56 7“ 1930 550 1930 450
60 7 1/2“ 2220 627 2220 513
64 8“ 2530 709 2530 579
72 9“ 3200 887 3200 723
80 10“ 3950 1080 3950 884
88 11“ 4780 1300 4780 1053
96 12“ 5690 1530 5690 1239
104 13“ 6670 1780 6670 1482
112 14“ 7740 2050 7740 1690
120 15“ 8880 2340 8880 1930
128 16“ 10100 2650 10100 2187
136 17“ 11400 2980 11400 2461
144 18“ 12800 3320 12800 2751
160 20“ 15800 4060 15800 3395

Chart 2

Specifications Polypropylene Multifilament Polypropylene
Diameter Circumference Linear Density(Ktex) Breaking Strength(KN) Linear Density(Ktex) Breaking Strength(KN)
mm Inch Ktex KN Ktex KN
20 2 1/2“ 189 62.6 180 56.9
24 3“ 273 87.7 260 79.7
28 3 1/2“ 373 115 355 105
32 4“ 483 146 460 132
36 4 1/2“ 614 182 585 166
40 5“ 756 221 720 201
44 5 1/2“ 924 266 880 242
48 6“ 1092 308 1040 280
52 6 1/2“ 1281 357 1220 325
56 7“ 1491 408 1420 371
60 7 1/2“ 1712 467 1630 424
64 8“ 1943 528 1850 480
72 9“ 2457 663 2340 603
80 10“ 3045 815 2900 741
88 11“ 3686 978 3510 890
96 12“ 4379 1155 4170 1050
104 13“ 5145 1325 4900 1204
112 14“ 5985 1529 5700 1390
120 15“ 6825 1756 6500 1596
128 16“ 7770 1982 7400 1802
136 17“ 8820 2231 8400 2029
144 18“ 9870 2490 9400 2264
160 20“ 12100 3051 11521 2774

Chart 3

Specifications Polyester Polypropylene And Polyester Mixed rope
Diameter Circumference Linear Density(Ktex) Breaking Strength(KN) Linear Density(Ktex) Breaking Strength(KN)
mm Inch Ktex KN Ktex KN
20 2 1/2“ 303 62.3 194 68.7
24 3“ 437 89.6 279 96.3
28 3 1/2“ 594 120 380 130
32 4“ 778 154 497 167
36 4 1/2“ 982 190 629 210
40 5“ 1215 235 776 257
44 5 1/2“ 1468 279 939 308
48 6“ 1750 329 1110 364
52 6 1/2“ 2050 384 1320 424
56 7“ 2380 439 1520 489
60 7 1/2“ 2730 489 1750 558
64 8“ 3110 568 1990 631
72 9“ 3930 707 2520 789
80 10“ 4850 867 3110 963
88 11“ 5870 1040 3750 1160
96 12“ 6990 1230 4470 1370
104 13“ 8200 1420 5260 1590
112 14“ 9500 1620 6050 1840
120 15“ 10900 1865 6980 2100
128 16“ 12400 2110 7950 2370
136 17“ 14000 2400 8950 2660
144 18“ 15700 2650 10100 2970
160 20“ 19400 3270 12500 3630
