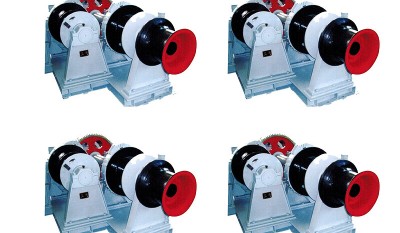

50KN Electric Mooring Winch
30-160KN Electric Mooring Winch
The electric or hydraulic winches are used in inland river boats and coustal ships for mooring hoisting or weigthing.
Drawing
Technical specifications
| Names | Drum Load (KN) | Nominal Speed (m/min) | Rope Diameter (mm) | Cable Capacity (m) | Remarks |
| 30KN Electric Mooring Winch | 30 | 10 | 20.5 | 120 | |
| 40KN Electric Mooring Winch | 40 | 15 | 20.5 | 160 | |
| 50KN Electric Mooring Winch | 50 | 15 | 24 | 180 | |
| 50KN Electric Mooring Winch | 50 | 15 | 24 | 800 | |
| 60KN Electric Mooring Winch | 60 | 15 | 26 | 200 | |
| 80KN Electric Mooring Winch | 80 | 15 | 28 | 200 | |
| 100KN Electric Mooring Winch | 100 | 10 | 32.5 | 200 | |
| 125KN Electric Mooring Winch | 125 | 10 | 32.5 | 200 | |
| 160KN Electric Mooring Winch | 160 | 10 | 37.5 | 200 |
