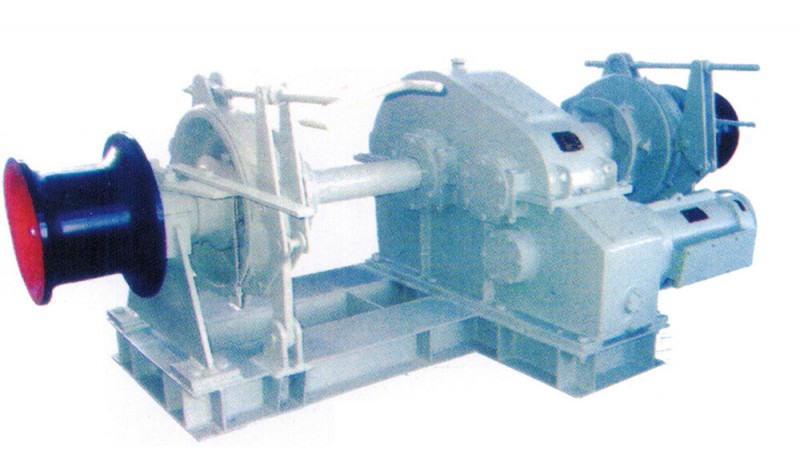

32mm Symmetrical Type Electric Anchor Winch
17.5-46mm Symmetrical Type Electric Anchor Winch
The electricw anchor winch is installed on the main deck of the first part of the ship for anchoring and anchoring the cable. The electric anchor winch is a power-driven anchor machine.
Drawing
Technical Specifications
|
Dia.of Chain Wheel (mm) |
Working
Load （Kn) |
Over
Loading Pulling Force (Kn) |
Holding
Load (Kn） |
Nominal Speed (m/min) |
Warping Load (Kn) |
|||
| AM2 | AM3 | AM2 | AM3 | AM2 | AM3 | |||
| 17.5 | 13.0 | 14.6 | 19.5 | 21.9 | 80 | 115 | 9 | 8 |
| 19 | 15.3 | 17.2 | 23.0 | 25.8 | 95 | 135 | 9 | 10 |
| 20 | 17.9 | 20.0 | 26.9 | 30.0 | 110 | 157 | 9 | 10 |
| 22 | 20.6 | 23.0 | 30.9 | 34.5 | 126 | 180 | 9 | 15 |
| 24 | 24.5 | 27.4 | 36.8 | 41.1 | 149 | 214 | 9 | 20 |
| 26 | 28.7 | 32.1 | 43.1 | 48.2 | 175 | 250 | 9 | 20 |
| 28 | 33.3 | 37.2 | 50.0 | 55.8 | 202 | 289 | 9 | 20 |
| 30 | 38.3 | 42.8 | 57.5 | 64.2 | 231 | 330 | 9 | 30 |
| 32 | 43.5 | 48.6 | 65.3 | 72.9 | 261 | 374 | 9 | 30 |
| 34 | 49.1 | 54.9 | 73.7 | 82.4 | 294 | 421 | 9 | 30 |
| 36 | 55.1 | 61.6 | 82.7 | 92.4 | 329 | 470 | 9 | 30 |
| 38 | 61.4 | 68.9 | 92.1 | 103.4 | 365 | 522 | 9 | 40 |
| 40 | 68.0 | 76.0 | 102.0 | 114.0 | 402 | 576 | 9 | 40 |
| 42 | 75.0 | 83.8 | 112.5 | 125.7 | 442 | 632 | 9 | 50 |
| 44 | 82.3 | 92.0 | 123.5 | 138.0 | 483 | 691 | 9 | 50 |
| 46 | 89.9 | 100.5 | 134.9 | 150.8 | 526 | 753 | 9 | 50 |
