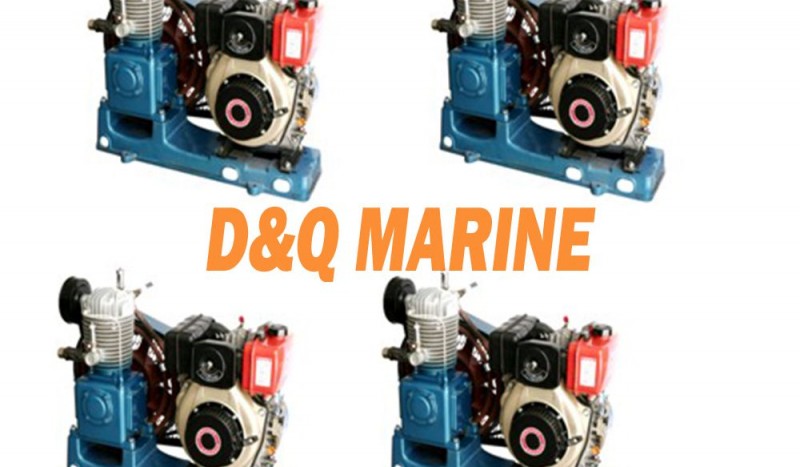

2ZFC-0.34/30-B Marine emergency air compressor
Category:
Marine Medium Pressure Air-cooled Series Air Compressor
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
2ZFC-0.34/30-B Marine emergency air compressor:
Model: 2ZFC-0.34/30-B Marine emergency air compressor
Type: double row, air cooled, two stage compression piston
Displacement: 0.34 m3 / min (20.4 m3 / h)
The rated pressure: 3.0 MPa
The air compressor host and ZFC - 0.34/30-2 B type Marine air compressor series products. Products with a Marine air-cooled diesel engine, with the hand to pull the centrifugal clutch starting, easy to operate. Products are especially suitable for the ship can reliable operation in emergency situations, is to ensure that the necessary for safe navigation of the ship.
Product features
1. Type has a single row, double row, V, W, the secondary compression piston.
2. With highly efficient, light weight, small volume, low noise, smooth operation
3. Products with manual/automatic stop, start, unloading relief function.

4. Apply to ship host to start.

Main Technical Parameter

Model Displacement Specified Pressure Rotating Speed Motor Power Dimension(L×W×H) Weight
m3/h m3/ min MPa r/min kW HP mm kg
CZ-5/30FZK 5 0.08 3.0 520 2.2 3 970×480×750 170
CZ-10/30FZK 10 0.17 500 3 4 970×480×750 175
CZ-20/30FZK 20 0.34 1000 5.5 7.5 970×480×750 200
2ZF-0.34/30-B 20.4 600 940×500×850 210
2ZF-0.34/30-B (Vertical unit) 586×520×1020 185
CVF-30/30 30 0.5 500 7.5 10 1100×650×580 275
CVF-40/30 40 0.67 640 11 15 1100×650×580 300
CWF-60/30 60 1 650 15 20 1310×714×810 366
CZC-10/30F( Emergency air compressor) 10 0.17 500 KM178F Diesel engine 970×400×700 140
Diesel-engine Model KM178F Starting method: hand drawn centrifugal clutch
2ZFC-0.34/30-B(Emergency air compressor) 20.4 0.34 600 KM186F Diesel engine 1000×500×780 170
Diesel-engine Model KM186F Starting method: hand drawn centrifugal clutch
