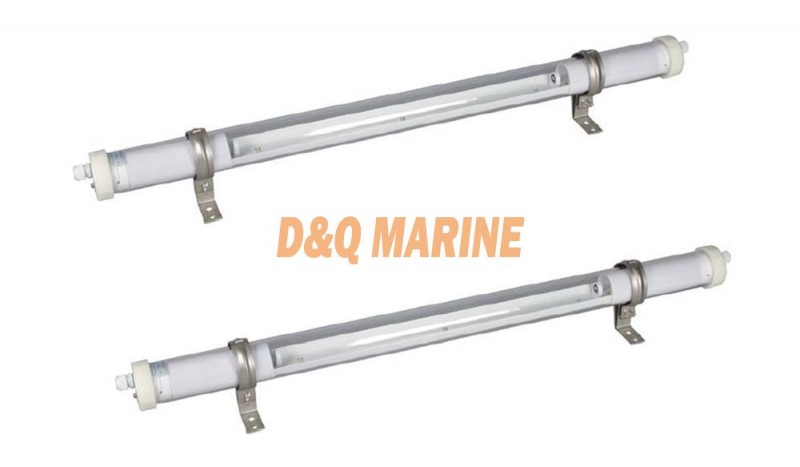

ZYC29/49 Fluorescent Pendant Light
The scope of application
1.This series of lights fit for illumination for the places of ships with water dripping, water spattering, water coagulating(such as weather place, such as oven cabin, dry cabin, tunnel, pipeline and weather deck etc.).
2.The temperature of work environment is -25℃～+55℃..
Products feature
1. Compact size, elegant appearance.
2. The lights adopt sealing structure with high waterproof ability.
3. Configured compensating capacitors in inside of light to improve the power factor and reduce losses.
4. The cable outside diameter isΦ9～Φ11mm.
5. Installation size is adjustable, convenient installation.
Adopt standard and product certification
1. Conform to standard of IEC60598-1-2008.
2. Conform to RULES FOR CLASSIFICATION OF SEA-GOING STEEL SHIPS.
3. Approved by China Classification Society (CCS).
4. Passed the European Union (CE) certification.
Installation
ZYC29/49 Fluorescent Pendant Light Specification
| Type | ZYC29-1 | ZYC49-1 |
| L(mm) | 1135 | 1737 |
| Power | 1*20W | 1*40W |
| Weight(kg) | 3.7 | 5.1 |
| Voltage/Frequency | 110V/60HZ,220V/60HZ,220V/50HZ | |
| Power Factor | 〉0.85 | |
| Lamp Holder | G13 | |
| Protection Class | IP67 | |
