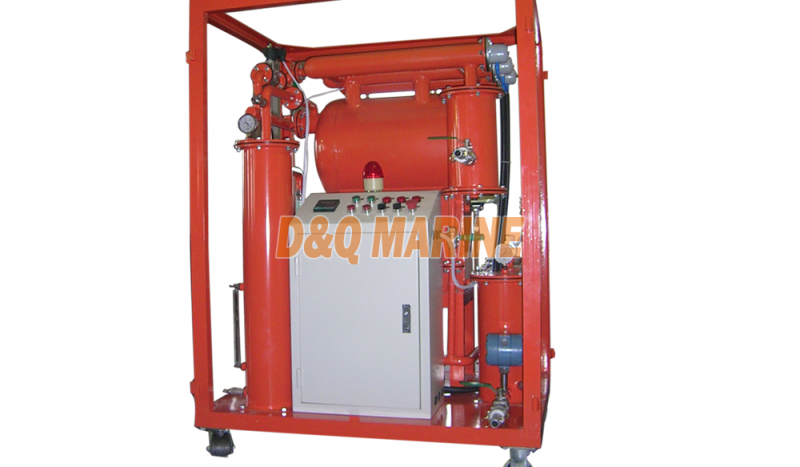

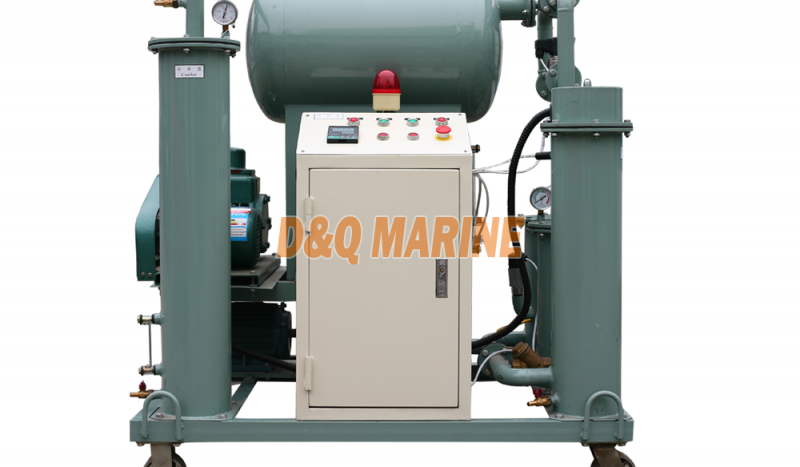

ZY Series High Efficient Vacuum Oil Purifier
Category:
Oil Purifier
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
ZY Series High Efficient Vacuum Oil Purifier:
Application:

Mainly used for treatment of the transformer oil, mutual inductor oil and circuit breaker oil under 110KV in electric power company, power transmit and industry enterprises.

Technical Feature:

Highly efficient, cubic evaporation, 3-5 times higher efficiency than ordinary oil purifier. The purifier can remove water, gas and impurities in oil with high efficiency to elevate the withstand capability and quality of oil, which ensures a sale operation of power generation equipment, easy to move and can be put in service both indoor and outdoor.

The infrared liquid level automatic control device system, automatic thermostatical control system, automatic defoaming control system, automatic pressure protector, high efficient water and gas removing comonents are adopted, which are easy and safe to operate.

Modern design, compact structure, easy operation, online working, no people beside, could working under any situation.

(ZYA could automatic test the breakdown voltage of the oil and print the result out).

Techincal Data:

Item Unit ZY-6 ZY-10 ZY-20 ZY-30 ZY-50 ZY-100 ZY-150 ZY-200 ZY-300
ZYA-6 ZYA-10 ZYA-20 ZYA-30 ZYA-50 ZYA-100 ZAY-150 ZYA-200 ZYA-300
Flow rate L/min 6 10 20 30 50 100 150 200 300
Work range Mpa -0.06~-0.095
Work pressure Mpa ≤0.4
Medium temperature 20 ~80
Power / 3phase 380V/50HZ or at user's option
Noise db(A) dB(A) ≤65~85(depend on user's requirement)
Fault-free working hours h ≥4000
Continuous
running houres
h ≥150
Heating Power Kw 9 15 15 15 24 48 54 72 96
Total Power Kw 9.7 16.5 16.5 16.5 26 52 60 80 105
Inlet(outlet) diameter mm Φ20 Φ25 Φ25 Φ25 Φ32 Φ42 Φ50 Φ50 Φ60
Weight kg 150 280 300 350 380 550 680 900 1200
After
filteration
Breakdown voltage KV ≥65
Water content ppm ≤5
Gas content % ≤0.1
Filter precision μm ≤5(at user's option)
