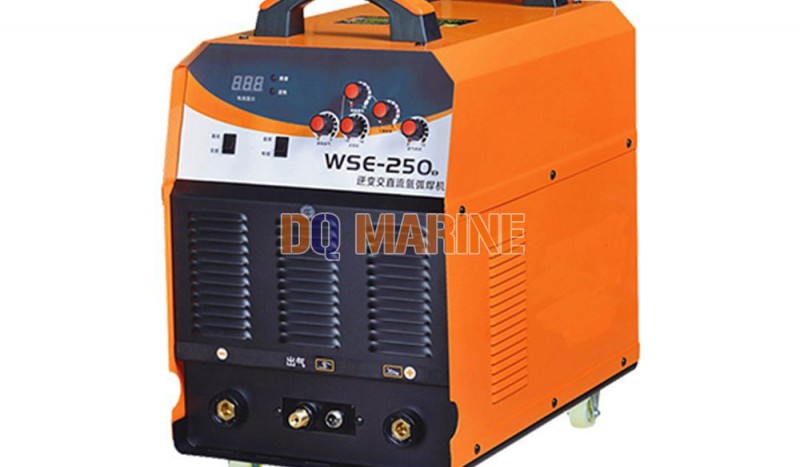

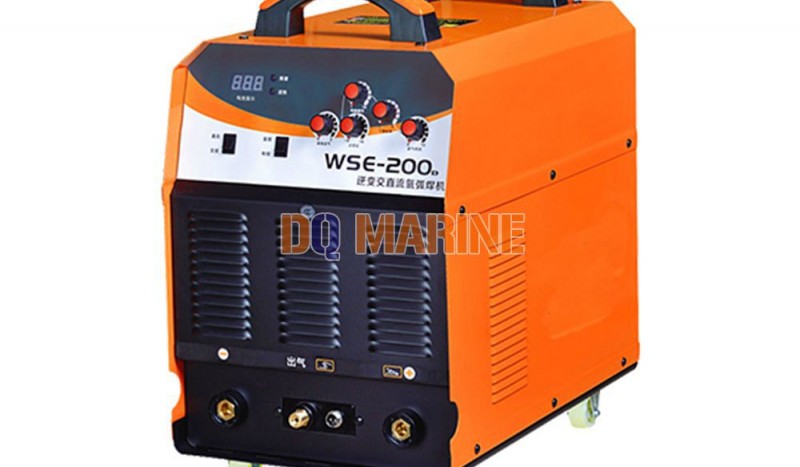

WSE-200S 250S Inverter Square-Wave Welding Machine
WSE-200S 250S Inverter Square-Wave Welding Machine Introduction
It can be used as AC/DC argon arc welding and DC manual electric welding machine.
Excellent square-wave power source, short current zero time, stable electric arc. No-need high-Frequency initiation.
Stable arc stiffness, concentrated heat and easy wire filling.
Super powerful oxide film removal property, adjustable removing width, bright and graceful welding seam.
Over-heat, over-current, over/under voltage alarming, with circuit protection, easy to operate.
Suitable for welding aluminum and aluminum alloy, stainless steel, carbon steel, copper, titanium, and other metals.
Technical Parameter
| TYPE | WSE-200S | WSE-250S |
| Power Voltage (V) | AC 220V ± 15% | AC 220V ± 15% |
| Frequency (HZ) | 50/60 | 50/60 |
| Rated Input Power (KVA) | 5.3 | 6.6 |
| Scope Of Output Current Adjustment (A) | 10-160 | 10-190 |
| Rated No-Load Voltage (V) | 56 | 56 |
| Rated Working Voltage (V) | 16.4 | 17.6 |
| Front Blow (S) | 0-2 | 0-2 |
| Duty Ratio (%) | 20-80 | 20-80 |
| Decat Time (S) | 0-5 | 0-5 |
| Exhaust Time (S) | 2-10 | 2-10 |
| Arc Initiation Mode | High Frequency | High Frequency |
| Duty Cycle (%) | 60 | 60 |
| Weight (KG) | 22.6 | 23.5 |
| Overall Size (mm) | 510x335x560 | 510x335x560 |
| Welding Rod Diameter (mm) | 1.6-3.2 | 1.6-4.0 |
