Wringing Suction Products
Drawing:
Specification:
| no | diameter of suction pipe(mm) | inner diameter of reamer ring D(mm) | speed(r/min) | number of reamer arms |
| 1 | Φ250~300 | 830 | 0~34 | 5 |
| 2 | Φ350~400 | 955 | 0~35 | 5 |
| 3 | Φ350~400 | 955 | 0~30 | 5 |
| 4 | Φ400~450 | 1330 | 0~30 | 5 |
| 5 | Φ500~550 | 1550 | 0~30 | 5 |
| 6 | Φ600~650 | 1750 | 0~32 | 5 |
| 7 | Φ600~650 | 1750 | 0~30 | 5 |
| 8 | Φ600~650 | 1750 | 0~24 | 5 |
| 9 | Φ600~650 | 1830 | 0~30 | 5 |
| 10 | Φ650~700 | 2000 | 0~30 | 5 |
| 11 | Φ700~750 | 2150 | 0~30 | 6 |
| 12 | Φ800~850 | 2260 | 0~30 | 6 |
| 13 | Φ850~900 | 2330 | 0~30 | 6 |
| 14 | Φ900~950 | 2400 | 0~30 | 6 |

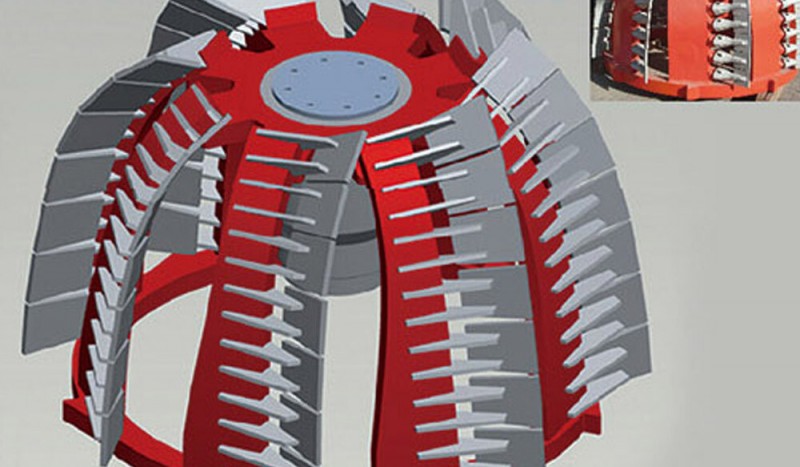

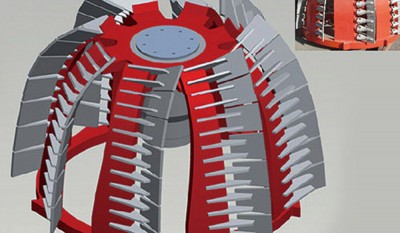

Picture:
Product Advantage:
1.Satisfactory Quality2.Competitive Price
3.Prompt Delivery
4.7x24 hours service
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
