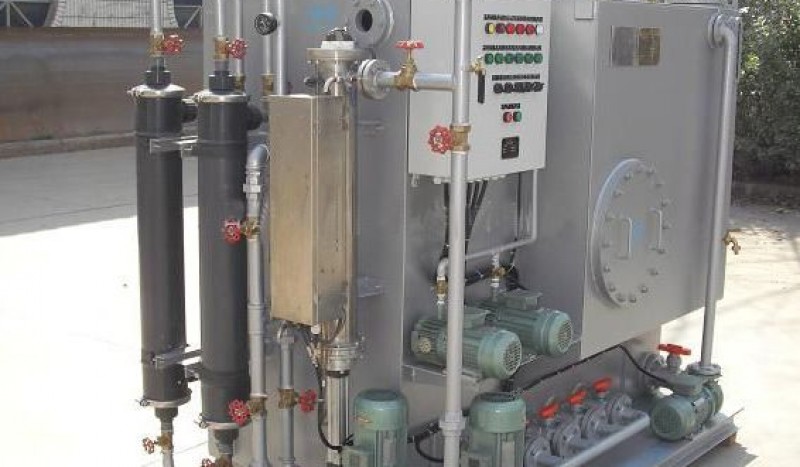

WCMBR-80 Marine Sewage Treatment Plant
Description:
This device is one of our company very mature product, it is widely used in the international ocean shipping, offshore oil drilling platform, can also be used to shore in related fields. So far, has been exported to the United States, South Korea, Europe, southeast Asia, the Middle East and other regions, favored by customers, simple operation, convenient maintenance, long service life. In China it have absolute advantage.
Principle:
Main Parameter:
| Model | WCMBR-80 |
| Suitable Number of People | 80 |
| Treatment load t/d | 6.16 |
| Organic load kg/d | 3.08 |
|
Installation
Dimentions L*W*H mm |
2300x1800x2321 |
| Drain standard | BOD5≤25mg/l, COD≤125mg/l,TSS≤mg/l, Coli group≤100pcs/100ml |
| Ulitrafilter | Advanced anti-soil ultrafiltration membrance |
| Back flushingwater pressure | 0.1-0.25Mpa |
| Power supply |
3Phase/AC380V/50HZ or
3Phase/AC440V/600HZ 220V/50HZ or 3Phase AC415V/50HZ |
| Control mode | Automatic/Manual |
