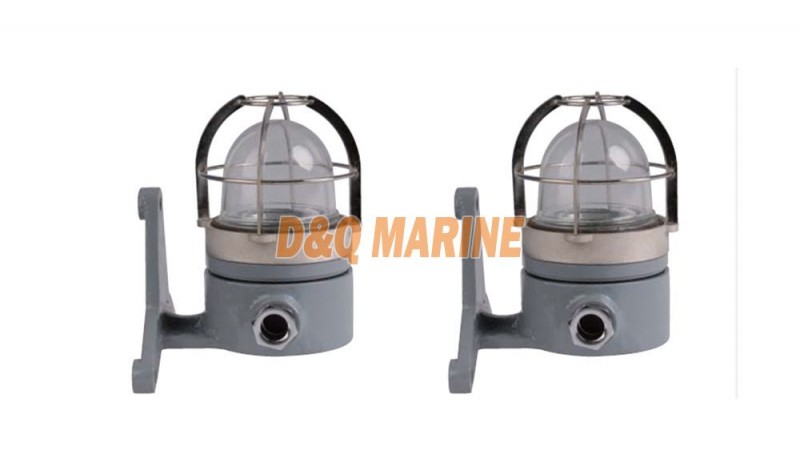

WB-1A Wall Light
The scope of application
This series of lights fit for illumination for the ships with water dripping, water spattering, water coagulating and weather place, such as oven cabin, dry cabin, pipe tunnel and weather deck etc.
Products feature
1. The light body adopts gray iron casting, nice shape.
2.cable outside diameter is Φ8～Φ10 mm.
3. Wall-type mounting
Adopt standard and product certification
1 .Conform to GB7000.201 standard.
2. Conform to GB7000.1 standard.
3. Conform to RULES FOR CLASSIFICATION OF SEA-GOING STEEL SHIPS.
Installation
WB-1A Wall Light Specification
| Type | WB-1A | |
| Voltage(V) | 24 | |
| Lamp Holder | FE12 FE14 FE15 | |
| Light source | Incandescent Lamp | |
| Power(W) | 15 | |
| Color | Transparent/Red/Green/Blue/Yellow | |
| Protection Class | IP56 | |
| Weight(kg) | 2.8 | |
