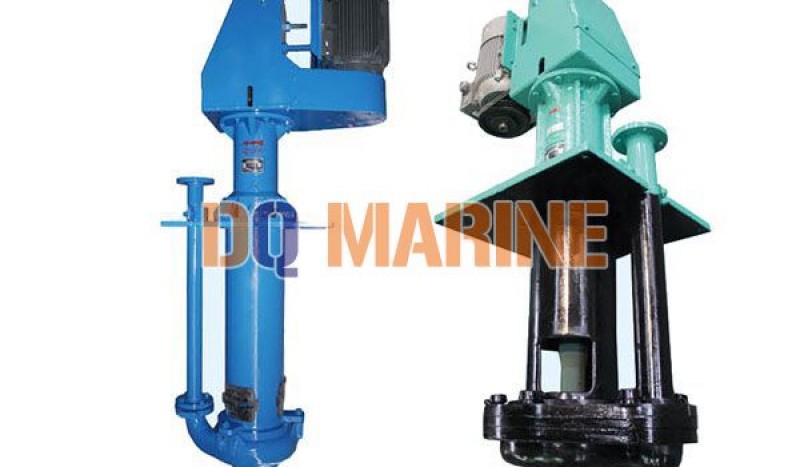

VS Series Vertical Slurry Pump
China VS Series Vertical Slurry Pump:
VS and VSR Pumps are vertical, centrifugal slurry pumps submerged in sump to work.They are designed for delivering abrasive, large particle and high density slurries.
Wet parts of type VS Pump are made of abrasion-resistant metal. All parts of type VSR Pump immersed in liquid are lined with rubber outer liner. They are suited to transport non-edge angle abrasive slurry.
Specificaiton:
| Type | Outlet Diameter(mm) | Speed(r/min) | Flow Capacity(m3/h) | Head(m) | Efficiency(%) | Power(kw) | Impeller Diameter(mm) |
| 40PV-SP | 40 | 1000-2200 | 17-43.2 | 4-28.5 | 40 | 15 | 188 |
| 65QV-SP | 65 | 700-1500 | 17-114 | 5-31.5 | 60 | 30 | 280 |
| 100RV-SP | 100 | 500-1200 | 54-289 | 5-36 | 62 | 75 | 370 |
| 150SV-SP | 150 | 500-1000 | 108-479 | 8.5-40 | 52 | 110 | 450 |
| 200SV-SP | 200 | 400-850 | 189-891 | 6.5-37 | 64 | 110 | 520 |
| 250SV-SP | 250 | 400-750 | 261-1089 | 7-33.5 | 60 | 200 | 575 |
| 300TV-SP | 300 | 350-700 | 288-1267 | 6-33 | 50 | 200 | 610 |
