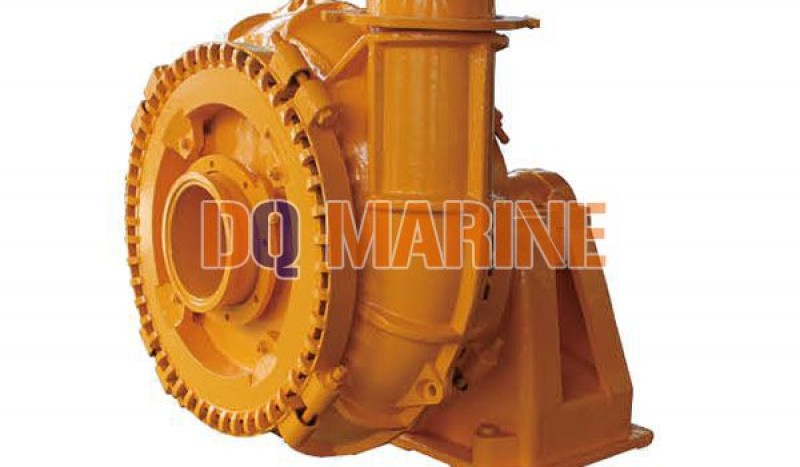

T14-12G Gravel Pump
China T14-12G Gravel Pump:
T(TH) Series Dredge pump is a kind of cantilevered single-stage centrifugal pump.Pump body is installed with junction plate and cover plate by clamp, which makes the disassembly convenient and quick.
Please contact us for more details.
Gravel Pump Specification
| Type | Capacity(m3/h) | Head(m) | Speed(r/min) | Max Solid Size(mm) | NPSH(m) |
| T6-4D | 36-252 | 3.5-51 | 600-1400 | 82 | 2.5-3.5 |
| T8-6E | 137-580 | 10-48 | 800-1400 | 127 | 3.0-4.5 |
| T10-8S | 220-1000 | 13-50 | 500-1000 | 178 | 3.0-7.5 |
| T10-8F | 220-1000 | 13-50 | 500-1000 | 178 | 3.0-7.5 |
| T12-10F | 360-1520 | 11-58 | 400-850 | 220 | 2.0-4.5 |
| T12-10G | 360-1520 | 11-58 | 400-850 | 220 | 2.0-4.5 |
| T14-12G | 500-3100 | 6-66 | 300-700 | 242 | 2.0-8.0 |
| T16-14G | 650-3610 | 9-48 | 250-500 | 254 | 3.0-6.0 |
| T18-16G | 860-3800 | 9-48 | 250-500 | 254 | 3.0-6.0 |
| TH12-10G | 600-2200 | 28-78 | 350-700 | 210 | 2.0-8.0 |
| TH10-8S | 400-1290 | 18-80 | 500-950 | 180 | 2.0-5.0 |
