US Navy Stockless Anchor:
China US Navy Stockless Anchor:
US Navy Stockless Anchor is conventional stockless Anchor, made of casting steel, supply to colombia market in 2017.
These have the same usage abilities as the stockless anchor, however the flukes are longer. Each fluke is provided with an opening for the insertion of strap- ping material in order to help secure the anchor to the ship’s deck.
Anchor Weight
| Kg | A | B | C | D | F |
| 680 | 1242 | 1086 | 885 | 213 | 595 |
| 748 | 1281 | 1120 | 913 | 220 | 614 |
| 816 | 1319 | 1154 | 941 | 226 | 632 |
| 907 | 1367 | 1195 | 975 | 234 | 655 |
| 997 | 1411 | 1234 | 1006 | 242 | 676 |
| 1134 | 1473 | 1288 | 1050 | 252 | 706 |
| 1247 | 1541 | 1347 | 1098 | 264 | 738 |
| 1360 | 1608 | 1406 | 1146 | 275 | 770 |
| 1470 | 1628 | 1424 | 1161 | 279 | 780 |
| 1587 | 1648 | 1441 | 1176 | 282 | 790 |
| 1700 | 1686 | 1474 | 1202 | 284 | 808 |
| 1814 | 1723 | 1506 | 1228 | 295 | 826 |
| 2041 | 1790 | 1565 | 1276 | 307 | 858 |
| 2268 | 1856 | 1656 | 1323 | 318 | 889 |
| 2495 | 1914 | 1674 | 1365 | 328 | 917 |
| 2721 | 1972 | 1724 | 1406 | 338 | 945 |
| 2948 | 2024 | 1770 | 1443 | 348 | 970 |
| 3175 | 2075 | 1815 | 1480 | 355 | 995 |
| 3289 | 2099 | 1836 | 1504 | 359 | 1006 |
| 3402 | 2123 | 1856 | 1528 | 363 | 1018 |
| 3638 | 2170 | 1897 | 1547 | 371 | 1040 |
| 3855 | 2214 | 1936 | 1579 | 379 | 1040 |
| 4082 | 2258 | 1974 | 1610 | 386 | 1082 |
| 4309 | 2298 | 2009 | 1639 | 393 | 1101 |
| 4536 | 2339 | 2044 | 1667 | 400 | 1120 |
| 4763 | 2376 | 2078 | 1694 | 407 | 1138 |
| 4989 | 2414 | 2111 | 1721 | 414 | 1157 |
| 5216 | 2450 | 2142 | 1747 | 420 | 1174 |
| 5443 | 2485 | 2173 | 1772 | 426 | 1191 |
| 5670 | 2519 | 2203 | 1796 | 431 | 1207 |
| 5896 | 2552 | 2232 | 1820 | 437 | 1223 |
| 6237 | 2600 | 2273 | 1854 | 445 | 1240 |
| 6577 | 2647 | 2314 | 1887 | 453 | 1268 |
| 6804 | 2674 | 2340 | 1908 | 458 | 1283 |
| 7711 | 2889 | 2439 | 1989 | 478 | 1337 |
| 8164 | 2844 | 2487 | 2028 | 487 | 1363 |
| 11340 | 3174 | 2775 | 2263 | 544 | 1521 |
| 11907 | 3224 | 2819 | 2299 | 552 | 1545 |
| 12474 | 3273 | 2862 | 2334 | 561 | 1568 |
| 13041 | 3323 | 2905 | 2369 | 569 | 1592 |
| 13608 | 3372 | 2948 | 2404 | 577 | 1616 |
| 14175 | 3416 | 2988 | 2436 | 585 | 1637 |
| 14742 | 3460 | 3028 | 2469 | 593 | 1659 |
| 15306 | 3505 | 3066 | 2500 | 601 | 1681 |
| 15876 | 3550 | 3104 | 2531 | 608 | 1701 |
| 16443 | 3591 | 3140 | 2560 | 615 | 1721 |
| 17010 | 3631 | 3175 | 2589 | 622 | 1740 |
| 17577 | 3671 | 3210 | 2618 | 629 | 1760 |
| 18144 | 3711 | 3245 | 2646 | 635 | 1779 |
| 18711 | 3748 | 3278 | 2672 | 642 | 1795 |
| 19278 | 3775 | 3308 | 2699 | 648 | 1811 |
| 19845 | 3822 | 3342 | 2726 | 656 | 1831 |
| 20412 | 3858 | 3376 | 2752 | 661 | 1850 |

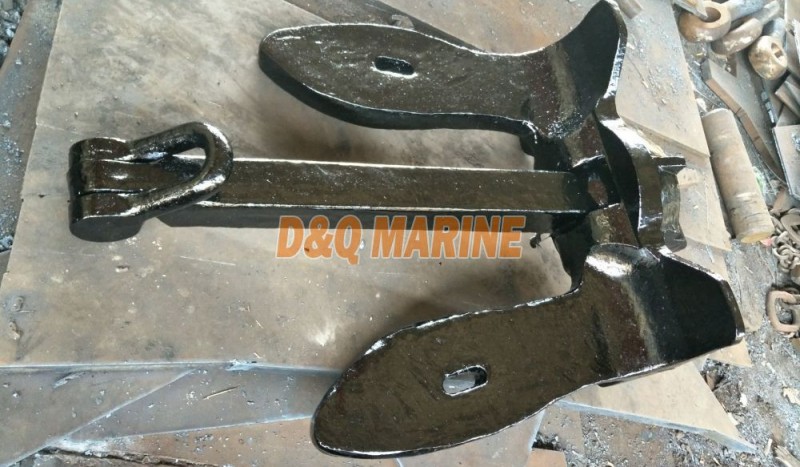

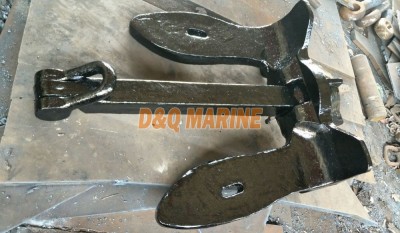

Anchor Photos
