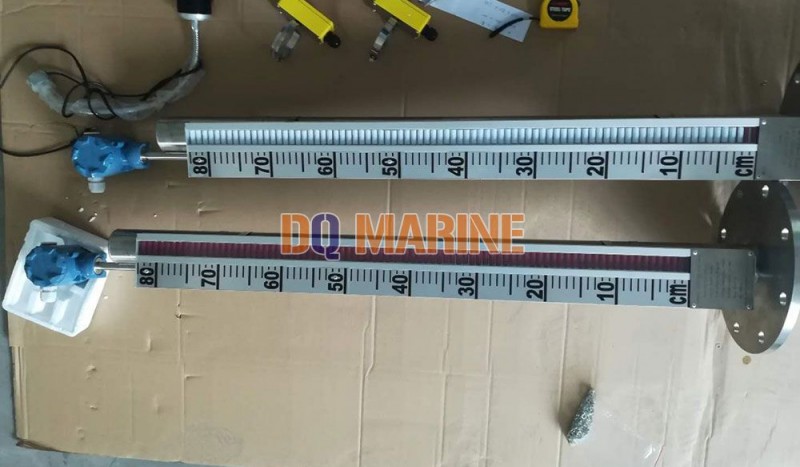

UHZ-515 Type Marine Magnetic Float Type Level Gauge
Product Description:
UHZ-515(top mounting type) magnetic float type level gauge are used to measure and control liquid level of liquid medium in underground tank.
Main Technical Specification:
Indication accuracy: ±20mm
Nonimal length: 0.5 meter to 3 meter
Medium gravity: equal or greater than 0.8
Working temperature 1.6MPa
Medium temperature: equal or less than 150 centigrade
Medium viscosity:equal or less than 0.01pa.S
Connection flange:CBM1012-81 DN125 PN5
Alarm switch: AC220V 1.0A retaining type(optional)
Output signal :DC24V 4~20mA (optional)
Model Sign:
Overall Dimension:

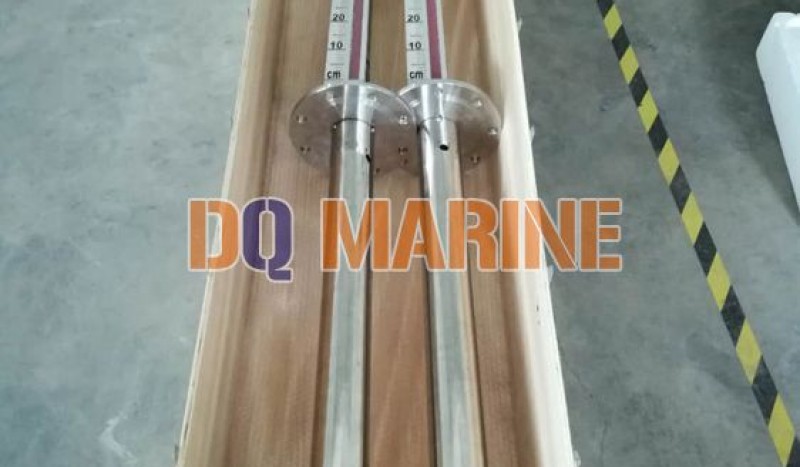

Packing and Delivery
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
