/photo/U2-32mm-Hot-Dip-Galvanized-Anchor-Chain.jpg

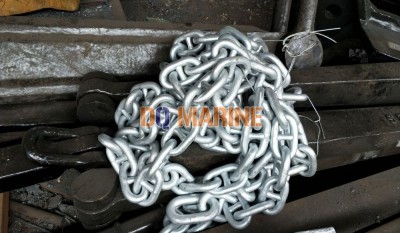

U2 32mm Hot Dip Galvanized Anchor Chain
Category:
Anchor Chain
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
U2 32mm Hot Dip Galvanized Anchor Chain:
China U2 32mm Hot Dip Galvanized Anchor Chain:

U2 32mm Hot Dip Galvanized Anchor Chain is made of high strength alloy steel bar, surface finish is hot dip galvanized with good feature of anti-corrosion, all chain have done the proof load testing, breaking load testing, UT,MT and other testing before delivery.

Size: 32mm

Grade: U2

Length: 27.5M/Length.

Chain size

Diamter CHAIN LINK SIZE AM2 AM3 APPROX.
U2 STUD LINK CHAIN U3 STUD LINK CHAIN WEIGHT
OUTSIDE OUTSIDE PROOF BREAKING PROOF BREAKING 27.5M
LENGTH WIDTH LOAD LOAD LOAD LOAD
MM MM MM KN KN KN KN KG
12.5 75 45 66 92 92 132 98
14 84 50.4 82 116 116 165 119
16 96 57.6 107 150 150 216 156
17.5 105 63 127 179 179 256 186
19 114 68.4 150 211 211 301 230
20.5 123 73.8 175 244 244 349 260
22 132 79.2 200 280 280 401 300
24 144 86.4 237 332 332 476 370
26 156 93.6 278 389 389 556 431
28 168 100.8 321 449 449 642 496
30 180 108 368 514 514 735 564
32 192 115.2 417 583 583 833 635
34 204 122.4 468 655 655 937 712
36 216 129.6 523 732 732 1050 800
38 228 136.8 581 812 812 1160 887
40 240 144 640 896 896 1280 1032
42 252 151.2 703 981 981 1400 1084
44 264 158.4 769 1080 1080 1540 1197
46 276 165.6 837 1170 1170 1680 1310
48 288 172.8 908 1270 1270 1810 1438
50 300 180 981 1370 1370 1960 1546
52 312 187.2 1060 1480 1480 2110 1661
54 324 194.4 1140 1590 1590 2270 1791
56 336 201.6 1220 1710 1710 2430 1926
58 348 208.8 1290 1810 1810 2600 2086
60 360 216 1380 1940 1940 2770 2249
62 372 223.2 1470 2060 2060 2940 2361
64 384 230.4 1560 2190 2190 3130 2516
66 396 237.6 1660 2310 2310 3300 2676
68 408 244.8 1750 2450 2450 3500 2885
70 420 252 1840 2580 2580 3690 3010
