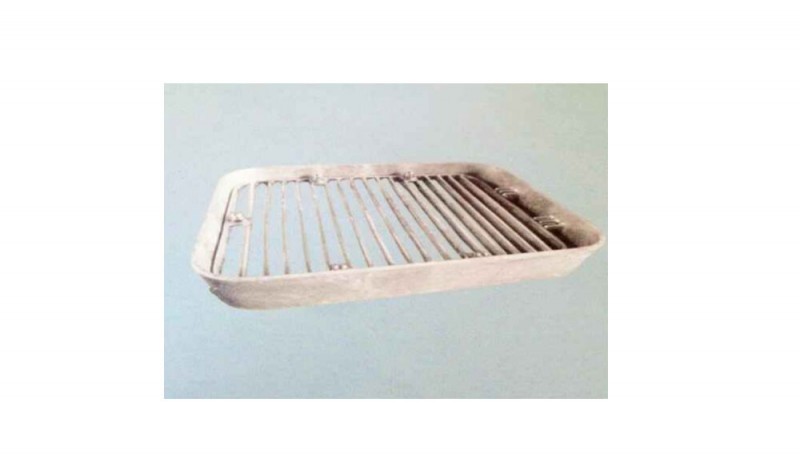

Suction Grille A Type
China Suction Grille A Type:
Bottom suction grille mainly filters the impurities mixed in the suction sea water, prevents the impurities from blocking the freshwater heat exchanger and the lubricating oil heat exchanger, and avoids the impurities from winding the cooling water pump and so on.
Drawing:
Specification:
| Valve Nominal Path | Grid Block | Grid | Bolt | Pin Bolt | Hull hole size | Flow area ratio | Weight | ||||||||
| L | B | H | H1 | δ | h | F | δ1 | Quantity | Diameter | Quantity | Diameter | ||||
| 100 | 160 | 224 | 100 | 65 | 7 | 20 | 20 | 5 | 6 | M10 | 2 | M12 | 178*262*50 | 3.25 | 6.9 |
| 125 | 202 | 294 | 100 | 65 | 7 | 20 | 20 | 5 | 6 | M12 | 2 | M12 | 220*310*50 | 3.24 | 8.2 |
| 150 | 210 | 390 | 105 | 70 | 8 | 25 | 20 | 5 | 6 | M12 | 2 | M12 | 230*410*60 | 3.26 | 11.2 |
| 20 | 290 | 442 | 110 | 75 | 8 | 25 | 20 | 5 | 6 | M12 | 2 | M12 | 310*462*60 | 3.60 | 17.7 |
| 25 | 360 | 550 | 115 | 80 | 10 | 30 | 25 | 6 | 5 | M12 | 2 | M12 | 384*574*80 | 3.05 | 32.3 |
| 300 | 480 | 616 | 130 | 95 | 10 | 30 | 25 | 6 | 5 | M16 | 2 | M16 | 504*640*80 | 3.08 | 42.6 |
| 350 | 526 | 740 | 130 | 95 | 10 | 30 | 25 | 6 | 7 | M16 | 2 | M16 | 550*764*80 | 3.00 | 50.0 |
| 400 | 592 | 868 | 145 | 105 | 12 | 35 | 25 | 6 | 7 | M16 | 2 | M16 | 620*896*100 | 3.00 | 76.7 |
| 450 | 652 | 992 | 145 | 105 | 12 | 35 | 25 | 6 | 7 | M16 | 2 | M16 | 680*1020*100 | 3.10 | 91.0 |
| 500 | 662 | 1176 | 150 | 110 | 12 | 40 | 25 | 6 | 7 | M16 | 2 | M16 | 690*1204*100 | 3.03 | 112.7 |
Picture:
