MARINE EQUIPMENT & SPARE PARTS

Marine Rising Manhole Cover

Reliable marine equipment supplied with technical support, quality control and worldwide delivery.

Loading product images...

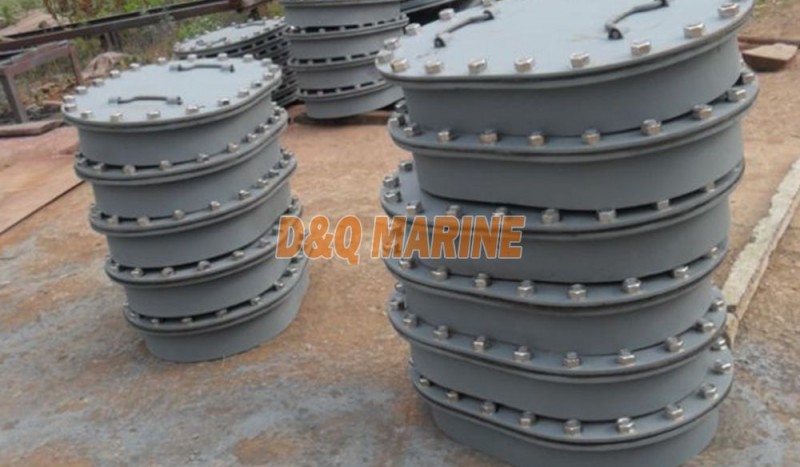

Marine Rising Manhole Cover

Category: Manhole Cover

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

Request a Quote Download Datasheet

We can supply according to your requirement.

Marine Rising Manhole Cover

Marine Rising Manhole Cover:

Standard: CB/T19-2001

Marine Manhole Cover is used for manhole on the oil tanks, water tanks, voil tanks and other tanks on various shipes. It is fixed on the falt positions on the hold bottom, deck and bulkhead.It is watertight and oiltight.There are Type A,B,C & D. The shape can be round, oval, square.

*Manhole Cover Type A is also called as Marine Rising Manhole Cover.

Main Material:

Cover: Carbon Steel

Coaming: Carbon Steel

Seal Ring: NBR

Bolt, Nut, Washer: Stainless Steel, Caron Steel , Copper

Main Size List(mm):

Model	Nominal Size	L	L1	L2	B	B1	B2	S	Bolt		Weight
	LxB								Diamter	Quantity	kgs
A	450x350	450	470	570	350	370	470	4	M20	16	23.2
								6			30.8
								8			36.9
								10			45.8
	600x400	600	630	720	400	420	520	6		20	48.8
								8			59.2
								10			69.3
								12			79.6
	800x600	800	820	920	600	620	720	8		26	52.4
								10			65.8
								12			78.2
								14			90.2

*The coaming height (100MM in the drawing) can be adjusted according to the customer's request.
