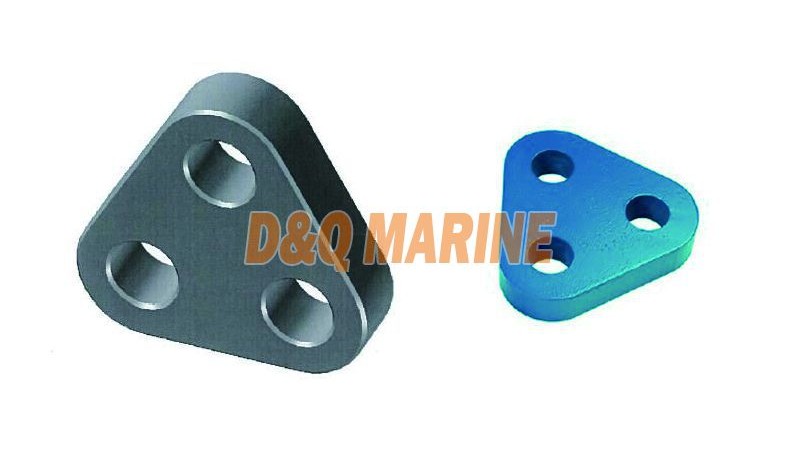

Triangle Plate:
China Triangle Plate:
Material: Hign Tensile Steel
Safety Factory: 1:5
Certificate: ABS, LR, BV, DNVGL,CCS
We also can supply according to your request.
| SWL(Ton) | MBL(Ton) | A(mm) | B(mm) | C(mm) | R(mm) | X(mm) | Y(mm) | Weight(kg) |
| 17 | 85 | 47 | 35 | 120 | 65 | 250 | 234 | 10 |
| 25 | 25 | 55 | 40 | 150 | 80 | 310 | 290 | 18 |
| 35 | 175 | 60 | 50 | 160 | 90 | 340 | 310 | 28 |
| 55 | 275 | 75 | 70 | 210 | 105 | 420 | 392 | 58 |
| 85 | 425 | 90 | 80 | 230 | 135 | 500 | 469 | 95 |
| 120 | 600 | 105 | 100 | 280 | 170 | 620 | 582 | 188 |
| 150 | 750 | 115 | 110 | 320 | 185 | 690 | 647 | 256 |
| 175 | 1000 | 115 | 110 | 320 | 195 | 710 | 667 | 274 |
| 200 | 1250 | 140 | 120 | 390 | 215 | 820 | 768 | 390 |
| 250 | 1500 | 150 | 140 | 390 | 240 | 870 | 818 | 518 |
| 300 | 2000 | 160 | 150 | 420 | 250 | 920 | 864 | 617 |
| 400 | 2500 | 185 | 200 | 490 | 300 | 1090 | 1024 | 1170 |
| 500 | 2500 | 200 | 200 | 550 | 360 | 1270 | 1196 | 1619 |
| 600 | 3000 | 220 | 200 | 600 | 400 | 1400 | 1320 | 1972 |
| 700 | 3500 | 230 | 250 | 600 | 400 | 1400 | 1320 | 2352 |
