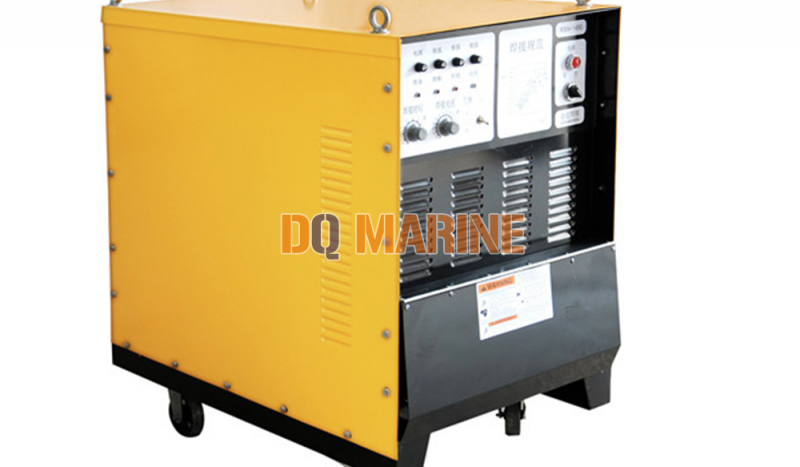

RSN-800 Arc Stud Welding Machine
RSN-800 Arc Stud Welding Machine Introduction
This product is mainly used in ship insulation pin, pressure vessel, boiler, chemical industry, pin welding, etc.
It adopts the German advanced electrical control system, main circuit adopts free inductance principle, decrease the dead weight on the basis that ensure the output power. Step-less adjustable welding current and time.
Product Technical Parameter
| TYPE | RSN-800 |
| Power Voltage | Standard Three-phase 220V 50/60Hz |
| Standard Three-phase 345V 50/60Hz | |
| Standard Three-phase 380V 50/60Hz | |
| Standard Three-phase 415V 50/60Hz | |
| Standard Three-phase 440V 50/60Hz | |
| Input Power With Different Duty Cycle | 67KVA (5%) |
| 20KVA (60%) | |
| 15KVA (100%) | |
| Max Working Current | 800A |
| Welding Time | 0.01-1s (Continuous Adjustment) |
| Stud Diameter | Ф3mm-Ф13mm |
| Protection Type | Procelain Ring Protection |
| Working Efficiency | 32 Ф3 mm stud /min |
| 3 Ф13 mm stud /min | |
| Weight | 138KG |
