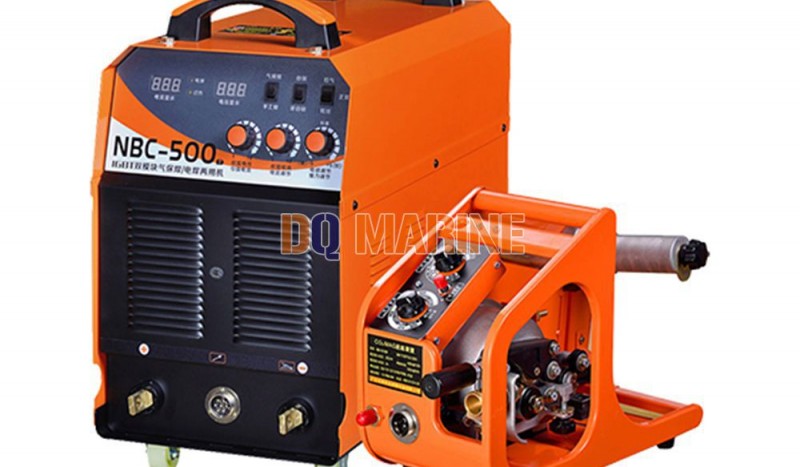

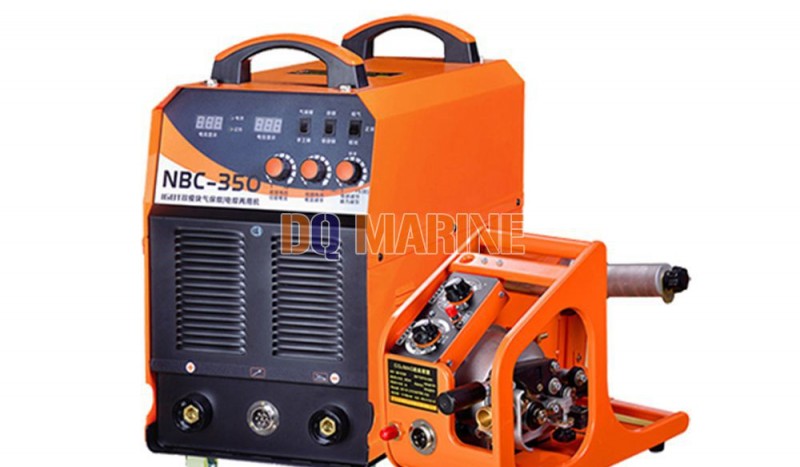

NBC-350 500T Inverter Gas Shielded Welding Machine
Category:
Welding And Cutting Equipment
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
NBC-350 500T Inverter Gas Shielded Welding Machine:
NBC-350 500T Inverter Gas Shielded Welding Machine Introduction

Full bridge IGBT technology with soft switch, current controlled, reliable quality and stable performance.

Electronic reactor control, stable welding arc, less splash, deep melting, graceful formation, high efficiency.

It boasts post-welding bead removal function, can remove molten bead at wire end, and can provide high unloaded voltage, slow feeding arc initiation so as to enhance the arc initiation success rate.

The product provide dual purposes that gas shielded welding and electric welding, saving equipment costs and ease user operation.

Adjustable arc, with wire test and gas test function, adjustable end current and voltage, self-lock function.

Technical Parameters

TYPE NBC-350 NBC-500T
Power Voltage (V) AC 380V ± 15% AC 380V ± 15%
Frequency (HZ) 50/60 50/60
Rated Input Power (KVA) 14.9 18
Scope Output Current Adjustment (A) 50-350 80-400
Scope Output Voltage Adjustment (V) 16.5-31.5 18-34
Duty Cycle (%) 60 60
No-Load loss (W) 80 80
Welding Wire Diameter(mm) 0.8/1.0/1.2 0.8/1.2/1.6
Welding Rod Diameter(mm) 1.6-5.0 2.5-6.0
Weight (kg) 38 40.4
Overall Size(mm) 610x313x590 610x313x590
