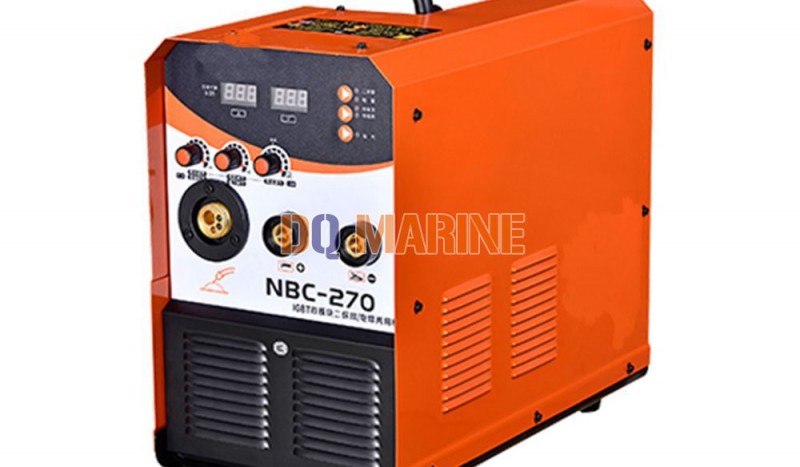

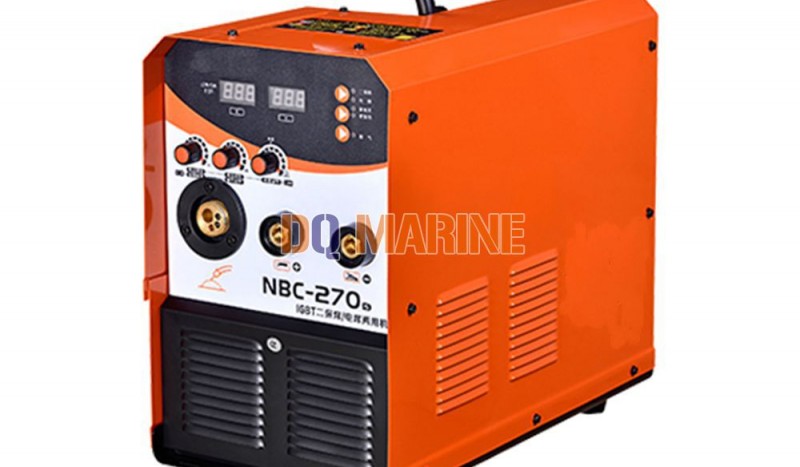

NBC-270 270S Inverter Gas Shielded Welding Machine
Category:
Welding And Cutting Equipment
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
NBC-270 270S Inverter Gas Shielded Welding Machine:
NBC-270 270S Inverter Gas Shielded Welding Machine Introduction

Exclusive appearance design, stable arc transition, less spatter, good formation and quality welding seam.

Continuously adjustable current and voltage, meet different welding process situations.

Adopt digital control inverter technology and imported IGBT, advance circuit design, high reliability.

Mainly used for many different welding positions of carbon steel, low-alloy steel, stainless steel and other ferrous metal.

The current less than 270A is suitable for sheet plate.

Fast switch for carbon dioxide welding and arc welding, one machine with two modes.

Technical Parameters

TYPE NBC-270 NBC-270S
Power Voltage (V) AC 220V ± 15% AC 220V ± 15%
Frequency (HZ) 50/60 50/60
Rated Input Power (KVA) 8.9 10.4
Scope Output Current Adjustment (A) 50-240 50-270
Scope Output Voltage Adjustment (V) 16.5-26 16.5-27.5
Duty Cycle (%) 60 60
No-Load loss (W) 80 80
Wire Feed Type one-piece one-piece
Welding Rod Diameter(mm) 0.8-1.0 0.8-1.0
Enclose Protection Level IP21 IP21
Insulation Level F F
Plate Thickness (mm) ≥0.8 ≥0.8
Weight (kg) 23.1 23.6
Overall Size(mm) 510x275x495 510x275x495
