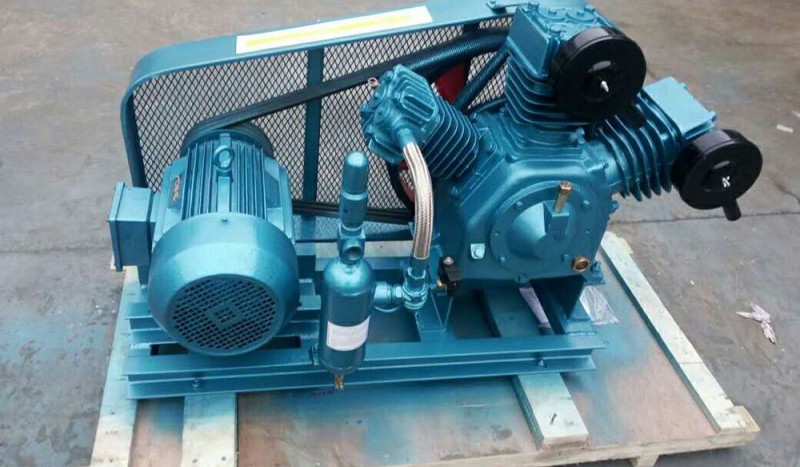

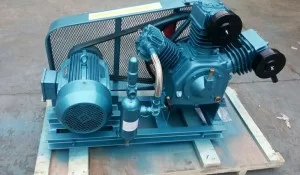

Medium Pressure Marine Air Compressor 2ZF-0.34/3-B
China Medium Pressure Marine Air Compressor 2ZF-0.34/3-B:
Model: 2ZF-0.34/3-B
Type: Piston,Horizontal
Rated Pressure: 3.0 Mpa
Displacement: 20.4m3/h(0.34m3/min)
Drive Mode: Belt
Marine Air Compressor 2ZF-0.34/3-B Main specifications
| Model | Displacement | Specified Pressure | Rotating Speed | Motor Power | Dimension（L×W×H） | Weight |
| m3/h | MPa | r/min | kW | mm | kg | |
| 2ZF-0.34/3-B | 20.4 | 3.0 | 600 | 5.5 | 1000×500×800 | 210 |
