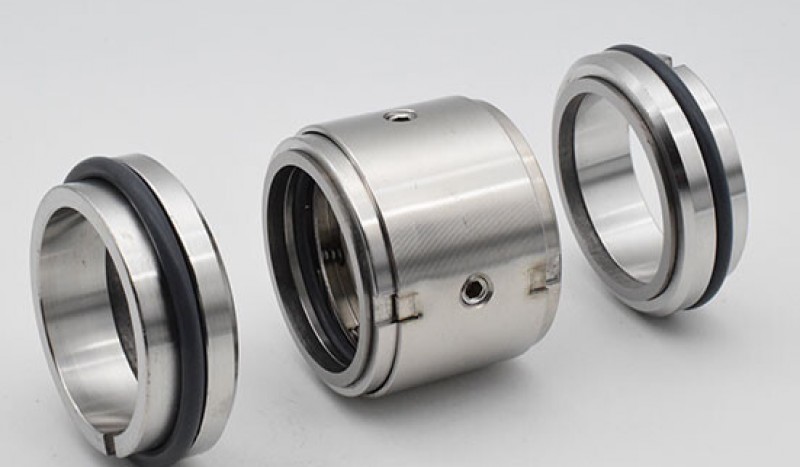

Mechanical seals for CLZ series pump 50CLZ-30

Mechanical seals for CLZ series pump 50CLZ-30

China Mechanical seals for CLZ series pump 50CLZ-30:

Double end/balanced/arbitrary/multi-spring structure
With the same design performance as the H7 series, other installation sizes (d1<100mm), except the installation length of the drive seat, conform to DIN24960 standard.
Work scope:
Gauge: 14 ~ 200 mm
Pressure: ≤ 4.0mpa
Temperature: -50 ~ 220℃
Linear velocity: ≤20 m/s
Axial cross momentum:
D1 100 or less: + / - 0.5 mm
D1 > : 100 + / - 2.0 mm
Seal face: graphite, silicon carbide, tungsten carbide, alumina
Auxiliary seal: nitrile rubber, fluoro rubber, ethylene rubber, PTFE
Metal components: stainless steel
