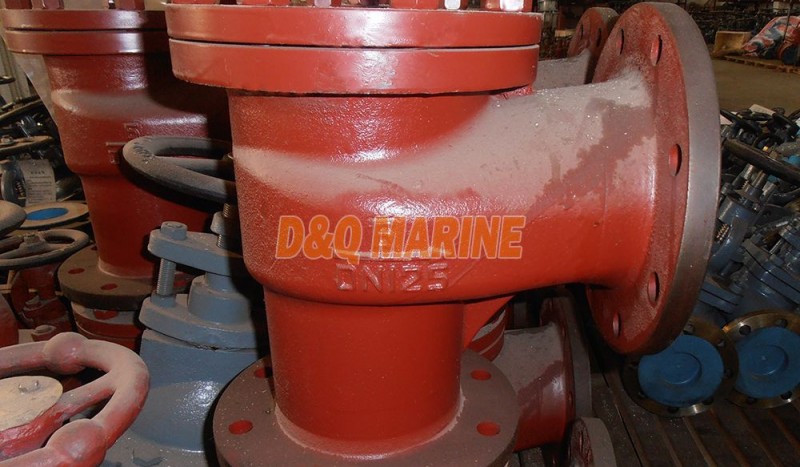

Marine Cast Iron Flanged Angle Check Valve GB/T592-93 Type B/BS
Category:
GB/CB/CBM Valve
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
Marine Cast Iron Flanged Angle Check Valve GB/T592-93 Type B/BS:
China Marine Cast Iron Flanged Angle Check Valve GB/T592-93 Type B/BS:

Marine Cast Iron Flanged Angle Check Valve GB/T592-93 is the marine angle lift check valve to prevent the backflow of medium.

Technical Specification:

Design Standard: GB/T592-93, CBM1089-81

Test Standard: GB600

Flange size as per GB569,GB2501

Hydraulic Test Pressure: 1.5 times of nominal pressure for body, 1.1 times of nominal pressure for seat.

Nominal Pressure(Mpa) Nominal Diameter(mm) Applicable Medium
0.6 50~150 sea water, fresh water, lubrication oil, fuel oil, steam not over 220℃
1.0 65~150
1.6 20~50
Main Material:

Body-Cast Iron(HT200)

Bonnet-Cast Iron(HT200)

Disc-Bronze(ZCuSn5Pb5Zn5)

Seat-Bronze(ZCuAl9Mn2)

Main Size List(mm):

Type B (Flange as per GB569):

PN (MPa) DN (mm) Structure Dimension Thickness δ Flange Bolt Lift Range
m
Weight
L H≈ H1
D D1 D2 d0 b n Th kgs
1.0 65 115 95 115 9 155 123 104 15 15 6 M14 19 12.9
80 125 102 125 9 170 138 118 15 15 8 M14 23 15.1
1.6 100 150 116 135 10 190 158 138 15 15 8 M14 28 21.6
125 175 135 155 10 215 183 164 15 15 10 M14 35 32.9
150 180 154 160 11 240 208 190 15 16 12 M14 42 41.2
20 75 66 75 7 95 68 48 13 14 4 M12 7 3.7
25 80 67 80 7 105 73 56 13 14 4 M12 7 4.2
32 85 68 85 7 115 83 64 15 15 6 M14 9 5.2
40 90 75 90 8 125 93 74 15 16 6 M14 12 6.6
50 95 85 95 8 135 103 84 15 16 8 M14 15 8.3

Type BS (Flange as per GB2501):

PN (MPa) DN (mm) Structure Dimension Thickness δ Flange Bolt Lift Range
m
Weight
L H1
D D1 D2 d0 b n Th kgs
0.6 50 125 85 125 8 140 110 90 14 16 4 M12 15 10.0
65 145 95 145 9 160 130 110 14 16 4 M12 19 16.4
80 155 102 155 9 190 150 128 18 18 4 M16 23 20.3
100 175 116 175 10 210 170 148 18 18 4 M16 28 32.2
125 200 135 200 10 240 200 178 18 20 8 M16 35 40.3
150 225 154 225 11 265 225 202 18 20 8 M16 42 56.4
1.0 65 145 95 145 9 185 145 122 18 20 4 M16 19 19.0
80 155 102 155 9 200 160 133 18 22 8 M16 23 22.7
100 175 116 175 10 220 180 158 18 24 8 M16 28 30.8
125 200 135 200 10 250 210 184 18 26 8 M16 35 42.3
150 225 154 225 11 285 240 212 22 26 8 M20 42 60.8
1.6 20 95 66 95 7 105 75 58 14 16 4 M12 7 5.0
25 100 67 100 7 115 85 68 14 16 4 M12 7 5.3
32 105 68 105 7 140 100 78 18 18 4 M16 9 7.3
40 115 75 115 8 150 110 88 18 18 4 M16 12 9.7
50 125 85 125 8 165 125 102 18 20 4 M16 15 12.0
