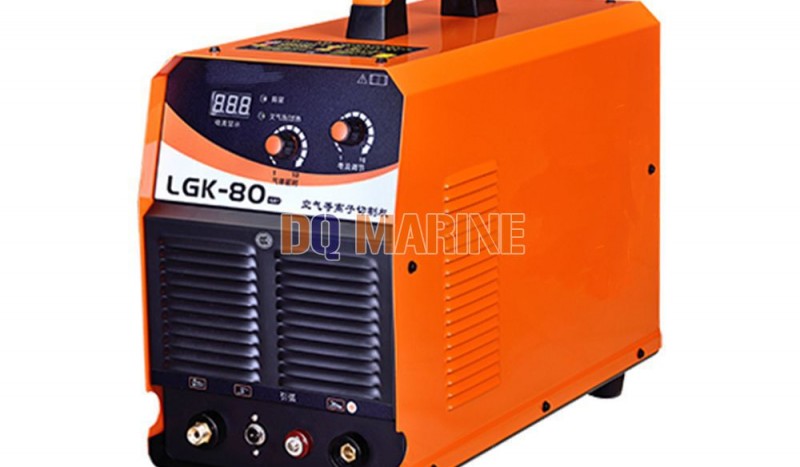

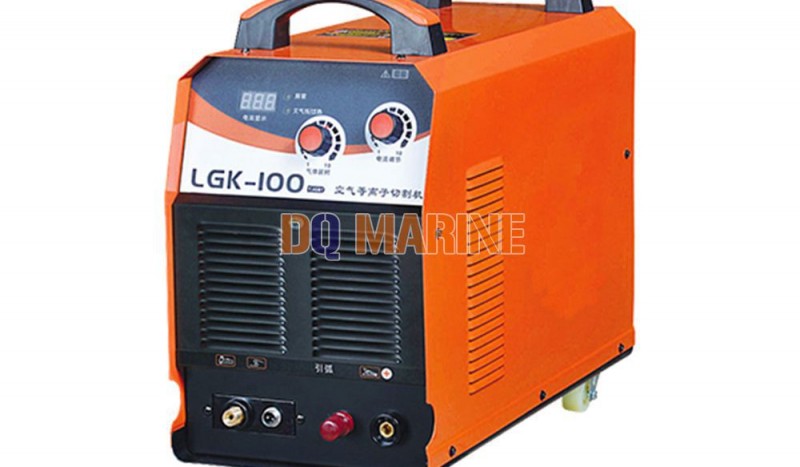

LGK-80 100T Inverter Air Plasma Cutting Machine
Category:
Welding And Cutting Equipment
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
LGK-80 100T Inverter Air Plasma Cutting Machine:
LGK-80 100T Inverter Air Plasma Cutting Machine Introduction

It is exquisitely with advanced inverter technology and imported IGBT module series, with the inverter frequency up to 20KHZ, quick dynamic response, good performance, high reliability, can meet high-quality cutting requirements.

Slim cutting gap, clean cut, low distortion, high usage of steel.

Cheap compressed air used as the cutting air, being economical and efficient compared to the flame cutting.

Direct and visual display, constantly adjustable current, available for different shapes of cutting in different positions.

Over-heat, over-current, over/under voltage etc. protection circuits are built in, safety operation.

Technical Parameters

TYPE LGK-80 LGK-100T
Power Voltage (V) AC 380V ± 15% AC 380V ± 15%
Frequency (HZ) 50/60 50/60
Rated Input Power (KVA) 10.3 12.1
Rated No-Load Voltage (V) 280 280
Output Current Adjustment (A) 20-75 20-85
Rated Output Voltage (V) 110 114
Duty Cycle (%) 60 60
Arc Initiation Mode Non-Contact Non-Contact
Suggested Air Pressure (KG) 5 6
Max Cutting Thickness (mm) 20 25
Weight (KG) 20.3 26.8
Overall Size (mm) 571x263x495 583x265x505
