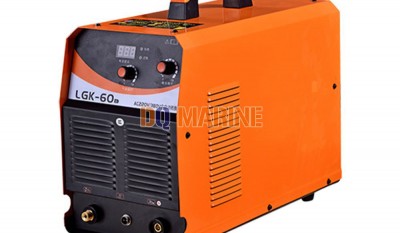

LGK-60D Inverter Air Plasma Cutting Machine:
LGK-60D Inverter Air Plasma Cutting Machine Introduction
It adopts the MOSFET inverter technology. Updated electronic circuit design, light power and energy saving.
Slim cutting gap, clean cut, low distortion, high usage of steel.
Cheap compressed air used as the cutting air, being economical and efficient compared to flam flame cutting.
Direct and visual display, constantly adjustable current, available for different shapes of cutting in different positions.
Over-heat, over-current, over/under voltage etc. protection circuits are built in, safety operation.
Dual input Voltage, Auto-recognition and transformation of voltage 220V and 380V.
Technical Parameters
| TYPE | LGK-60D |
| Power Voltage (V) | AC 220V / 380V ± 15% |
| Frequency (HZ) | 50/60 |
| Rated Input Power (KVA) | 6.6 |
| Rated No-Load Voltage (V) | 260 |
| Output Current Adjustment (A) | 20-52 |
| Rated Output Voltage (V) | 100.8 |
| Duty Cycle (%) | 60 |
| Arc Initiation Mode | Contact |
| Suggested Air Pressure (KG) | 5 |
| Max Cutting Thickness (mm) | 15 |
| Weight (KG) | 19.3 |
| Overall Size (mm) | 503x242x430 |
