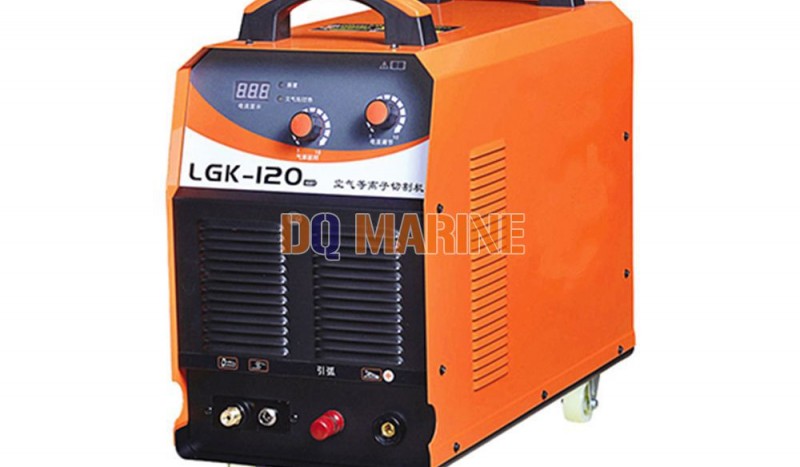

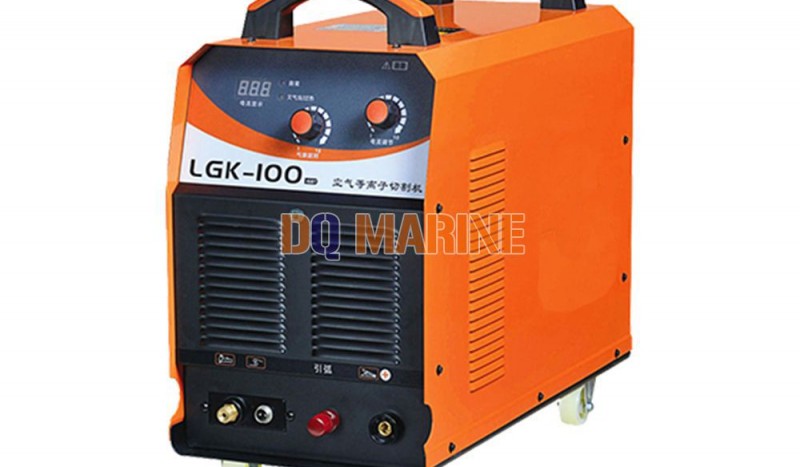

LGK-100 120 Inverter Air Plasma Cutting Machine
LGK-100 120 Inverter Air Plasma Cutting Machine Introduction
It is exquisitely with advanced inverter technology and imported IGBT module series, with the inverter frequency up to 20KHZ, quick dynamic response, good performance, high reliability, can meet high-quality cutting requirements.
Slim cutting gap, clean cut, low distortion, high usage of steel.
Cheap compressed air used as the cutting air, being economical and efficient compared to flame cutting.
Direct and visual display, constantly adjustable current, available for different shapes of cutting in different positions.
Over-heat, over-current, over/under voltage etc. protection circuits are built in, safety operation.
Technical Parameters
| TYPE | LGK-100 | LGK-120 |
| Power Voltage (V) | AC 380V ± 15% | AC 380V ± 15% |
| Frequency (HZ) | 50/60 | 50/60 |
| Rated Input Power (KVA) | 15 | 19.2 |
| Rated No-Load Voltage (V) | 280 | 280 |
| Output Current Adjustment (A) | 20-100 | 20-120 |
| Rated Output Voltage (V) | 120 | 128 |
| Duty Cycle (%) | 60 | 60 |
| Arc Initiation Mode | Non-Contact | Non-Contact |
| Suggested Air Pressure (KG) | 6 | 6 |
| Max Cutting Thickness (mm) | 30 | 40 |
| Weight (KG) | 31.1 | 31.5 |
| Overall Size (mm) | 593x282x546 | 583x282x546 |
