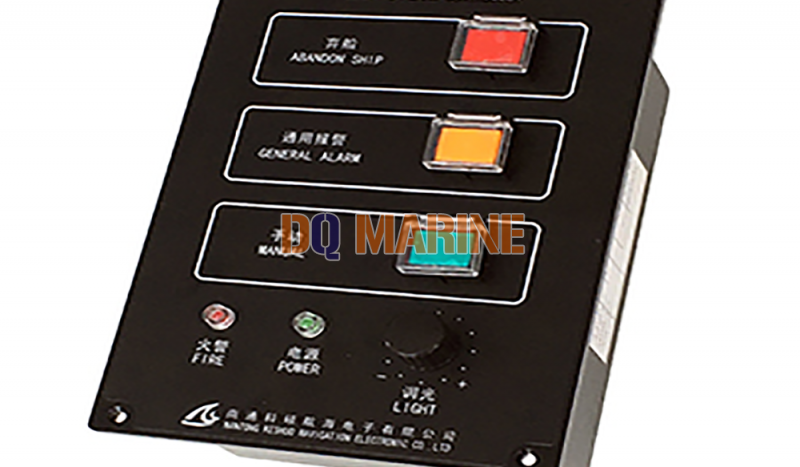

KSBJ-1Q General Alarm Controller

KSBJ-1Q General Alarm Controller

KSBJ-1Q General Alarm Controller Introduction

The panel is designed according to CCS criterion and SOLAS term, which can be applied in general alarm system. It also can be applied in PA system that the alarm signals will cover the whole vessel through loudspeaker. The panel adopts IC and micro technologies so which can provide various alarm signals.

KSBJ System Main Functions

1. With fire interface, PA interface, column light face, and fog horn interface.

2. GA emergency MIC station interface.

3. External alarm button interface.

4. Send out alarm signals by the radio system, start the alarm device of all vessel, start the light column devices, start the fog horn, etc.

5. Emergency speech on the PA.

6. The alarm or speech can output forcedly by PA.

7. Cut off the entertainment equipment.

8. Dimmer.

9. AC 220V and DC 24V power supply.

10. General alarm: Sven short one long signal.

Abandon ship: One short one long signal.

Manual alarm: According to the manual timing alarm on and off.

Fire alarm: Continuous modulation alarm.

11. The power of alarm bell control box is 350W (can increase power).

KSBJ-1Q Main Technical Parameter

Protection Class: IP 20

Power Supply: DC 24V

Installation Type: Flush type

For more information, please contact us directly.
