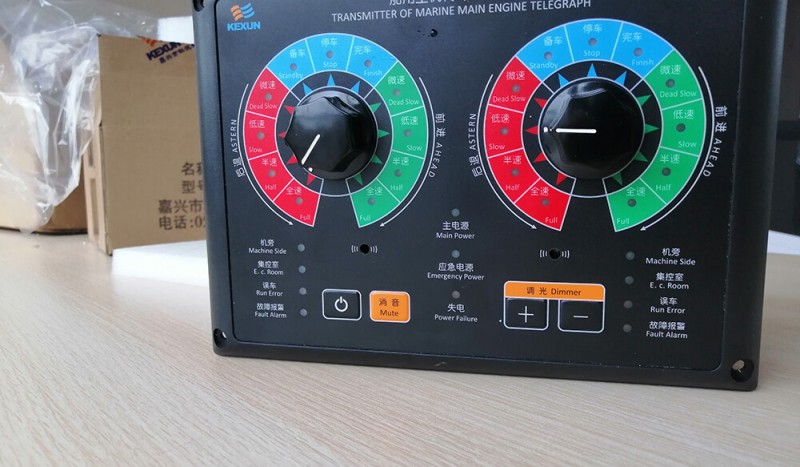

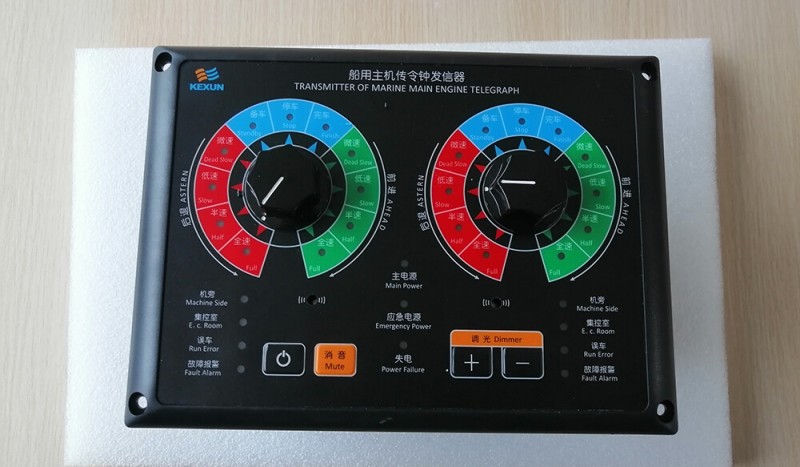

KED12-2S-Q Telegraph Transmitter

KED12-2S-Q Telegraph Transmitter

KED12-2S-Q Telegraph Transmitter Function

Adopt microprocessor technology and four-core cable connection mode.

Operation of the telegraph consists of 11 steps, ahead dead slow, ahead slow, ahead half, ahead full, stop, finish, standby, astern dead slow, astern slow, astern half, astern full.

When transmitter and receiver are not synchronous, it will send out audible and visual alarm.

Power failure alarm, fault alarm, and error alarm.

With VDR interface.

Technical parameter

Main power: DC 24V

Alarm sound pressure level: 80~90dB

Color: Black (RAL 9005)

IP Class: IP 20

Weight: 0.9kg

KED12-2S-Q Mounting Size
