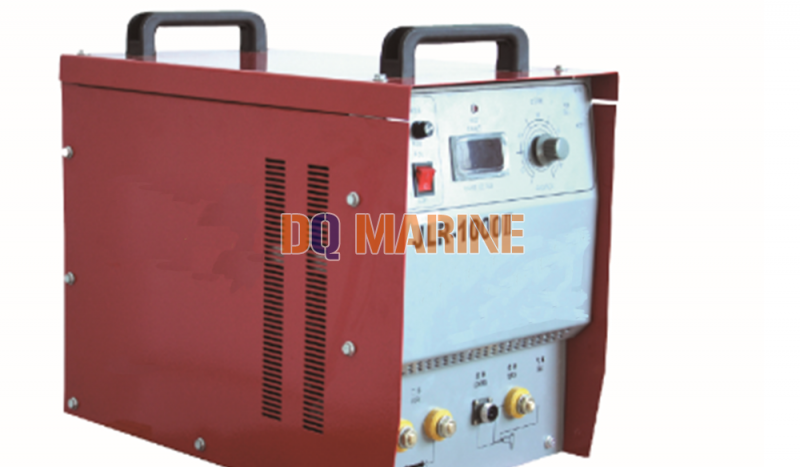

JLR-1000 Capacitive Storage Stud Welding Machine
JLR-1000 Capacitive Storage Stud Welding Machine Introduction
It mainly used for the size less than M6 stud, the material can be low carbon steel, stainless steel.
Small size, lightweight, portable, portable device, advanced technology and energy saving.
Product Technical Parameter
| TYPE | JLR-1000 |
| Power Voltage | 110V±10% 50HZ |
| 220V±10% 50HZ | |
| Input Power | 800VA |
| Charging Voltage | 30V-160V (Continuous Adjustment) |
| Discharging Time | 3ms-6ms |
| Stud Diameter | M3-M6 (mm) |
| Efficiency | 30/min |
| Weight | 30KG |
| Overall Size | 490mmx300mmx400mm |
