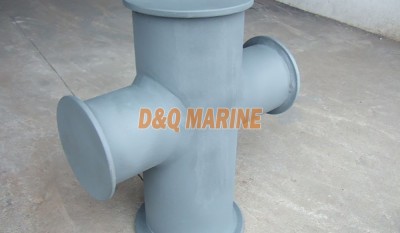

JISF2804 Standard Single Cruciform Bollard
Category:
Marine Bollard
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
JISF2804 Standard Single Cruciform Bollard:
JISF2804 Standard Single Cruciform Bollard

Description:

Nominal size of singe cruciform bollards: 50mm,75mm 100mm

Our bollards can be used for steel cables and ropes.

Operating Life:10~15 Years

Epoxy paint is usually a preference of a customer.

This bollard is custom made to satisfy your special requirements,we also customize bollard products for special requirements.

Drawing:


Size Chart:

Product No. Nominal Dia.(mm) Dimension(mm) Wire Rope Dia.(mm)
H D Weight(kg)
SCB-001 150 480 165 33 16
SCB-002 200 560 216 60 22
SCB-003 250 640 267 102 28
SCB-004 300 680 318 154 34
SCB-005 350 720 355 186 38
