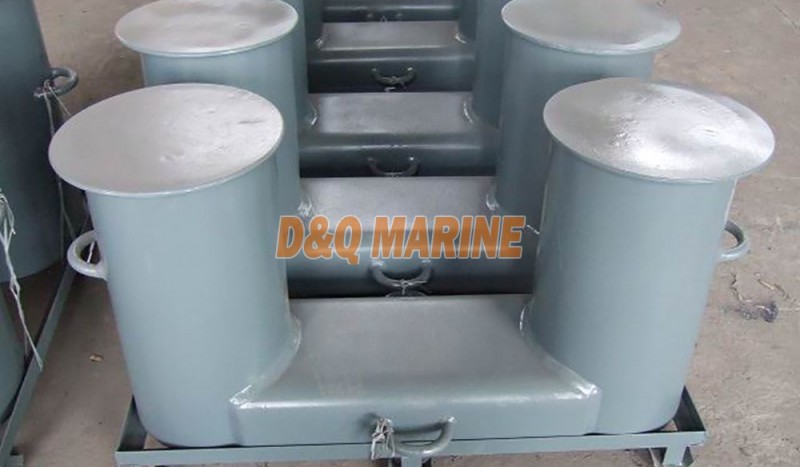

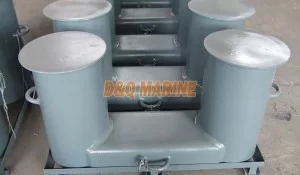

NS2584 Standard Marine Double Bitts
NS2584 Standard Marine Double Bitts
Description:
Steel plate double bitts,suitable for mooring ship.
Certificate:BV,ABS,LR,NK,CCS ETC.
Production time:About 7 to 25 days.
Drawing:
Size Chart:
| Product No. | Nominal Dia.(mm) | a1 | c | t1 | Weight(kg) |
| BDN-001 | 125 | 4 | 80 | 6 | 25.9 |
| BDN-002 | 160 | 4 | 90 | 6 | 37.2 |
| BDN-003 | 200 | 5 | 100 | 6 | 75.2 |
| BDN-004 | 250 | 5 | 125 | 10 | 124 |
| BDN-005 | 315 | 6 | 150 | 10 | 230 |
| BDN-006 | 400 | 8 | 175 | 10 | 356 |
| BDN-007 | 500 | 10 | 200 | 12 | 723 |
| BDN-008 | 630 | 10 | 225 | 16 | 1084 |
| BDN-009 | 710 | 10 | 250 | 16 | 1532 |
