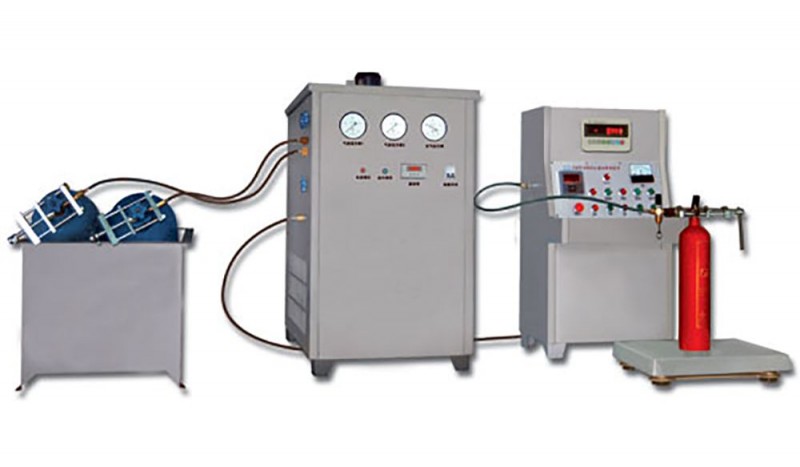

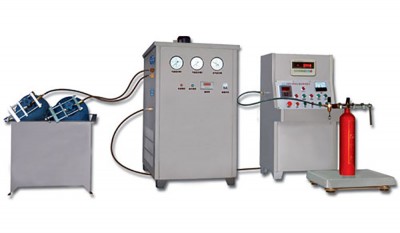

GTM-B Carbon Dioxide Fire Extinguisher Filling Machine
China GTM-B Carbon Dioxide Fire Extinguisher Filling Machine:
It is for CO2 fire extinguisher is a special equipment for filling MT2-MT7 portable extinguishers with CO2 extinguishants automatically. It makes a comprehensive use of electronic, electric, and mechanical techniques and renders the whole filling processes safe, reliable, simple in operation,accurate in filling quantity and highly efficient.
Technical Parameter:
1.Error Table forFilling Time and Quantity of the Filler
| Specification | MT2 | MT3 | MT5 | MT7 |
| Weight of extinguisher (kg) | 2 -0.15 | 3 -0.15 | 5 -0.2 | 7 -0.2 |
| Filling time(s) | ≤50 | ≤60 | ≤60 | ≤90 |
2.Working Temperature and Pressure Parameters of the Thermostat of the Filler
A. Thermal uniform temperature is controlled in the range of 38℃–45℃with a pressure of 9-10Mpa, heater power of 6KW and voltage of 380V.
B. Cold uniform temperature is controlled in the range of –5℃—5℃ with a pressure of≤7Mpa and power source voltage of
220V.
