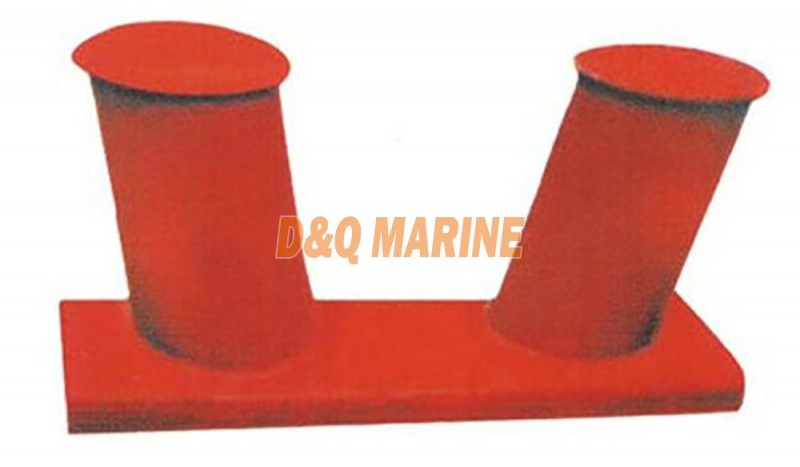

GB T556 Standard Welded Inclined Bollard
GB T556 Standard Welded Inclined Bollard Description:
This product can be used for berthing and mooring of ships.
It is a device settled on shore, used to bond the cable when vessel mooring.
Material: Cast steel, cast iron.
Process:casting, forging, welding, casting
Drawing:
Size Chart:
| Type | Max.Diameter | Max.Diameter | D | L | Weight(kg) |
| of Wire Ropes | of Hemp Ropes | ||||
| DH type | 8.7 | 75 | 50 | 310 | 5 |
| 11.5 | 90 | 70 | 430 | 11.5 | |
| 13.5 | 100 | 100 | 540 | 19.2 | |
| SH type | 15.5 | 125 | 125 | 660 | 25.2 |
| 17.5 | 150 | 150 | 750 | 33.3 | |
| 19.5 | 170 | 175 | 850 | 49.2 | |
| 22.5 | 200 | 200 | 950 | 68.8 | |
| 26 | 225 | 250 | 1150 | 95.7 |
