Folding hatch cover

Folding hatch cover

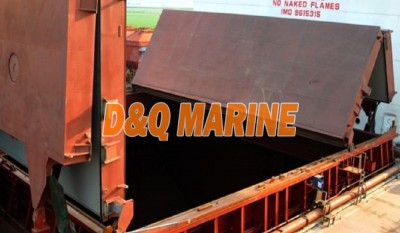

The two panels are connected with hinge. The active panel and deck are connected by one double
hinge arms. The wheel assembly designed at end side of driven panel. While operated driven by
hydraulic system, the active panels go round by end hinge pin and wheels are pulled up on the
railway until the two panels folding together at storage.

Drawing:
