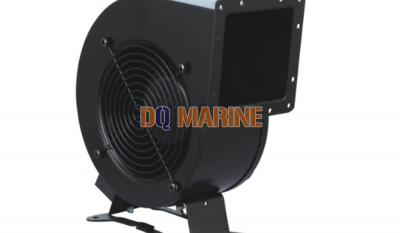

FLJ External Rotor Centrifugal Ventilator:
FLJ External Rotor Centrifugal Ventilator Introduction
The series of fan is composed of the external rotor single-phase capacitor run asynchronous motor, housing, impeller and mounting bracket. With the advantage of large wind volume, little vibration, low noise and compact structure and so on.
FLJ series is widely used in forcing ventilation of ground control facilities and electronic equipment, Also can be used in dusting pipeline. Advertising inflatable model, environmental protection, pollution control and so on.
FLJ Main Technical Parameter
| Model | Voltage (V) | Frequency (Hz) | Current (A) | Power (W) | Speed (r/min) | Volume (m3/h) | Static Pressure(Pa) | Noise (dB) |
| FLJ-130J1 | 220 | 50 | 0.39 | 85 | 2200 | 3.6 | 280 | 70 |
| FLJ-130J5 | 220 | 50 | 0.55 | 120 | 2600 | 5.5 | 350 | 72 |
| FLJ-150J17-A | 220 | 50 | 0.82 | 180 | 2500 | 7 | 400 | 72 |
| FLJ-150J17 | 220 | 50 | 1.12 | 240 | 2600 | 9.5 | 450 | 75 |
| FLJ-150J7 | 220 | 50 | 1.52 | 320 | 2800 | 12.5 | 450 | 76 |
| FLJ-170J3 | 220 | 50 | 1.82 | 400 | 2800 | 11 | 600 | 78 |
| FLJ-170J7 | 220 | 50 | 2.28 | 500 | 2800 | 15 | 630 | 80 |
