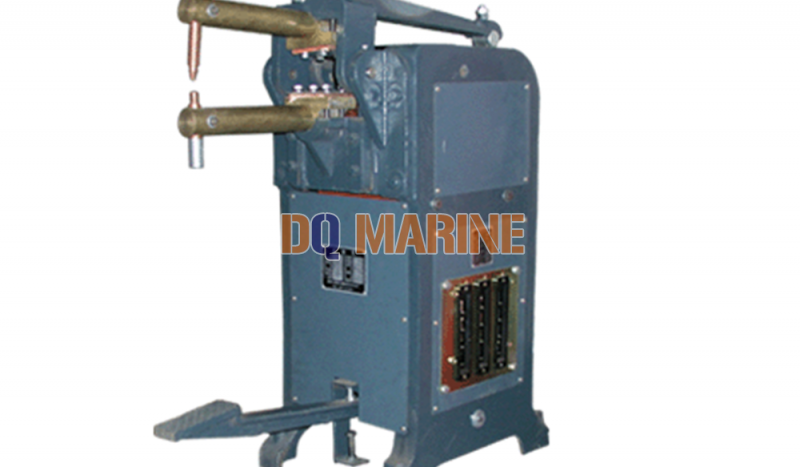

DN-25 Power Frequency AC Spot Welding Machine
DN-25 Power Frequency AC Spot Welding Machine Introduction
It is used for sheet plate spot welding, thickness 0.3-4.0mm, mainly used for low carbon steel, stainless steel, and galvanizing steel plate, etc.
High efficiency, suitable for multitudinous working.
Electrical components have updated, small size but long life service, adjustable current is available.
Product Technical Parameter
| TYPE | DN-25 |
| Power Voltage | 380V |
| Rated Capacity | 25KVA |
| Secondary Voltage | 1.76-3.52V |
| Low Carbon Steel Thickness | 4.0+4.0mm |
| Electrode Pressure | 150KG |
| Electrode Arm Stroke | 250mm |
