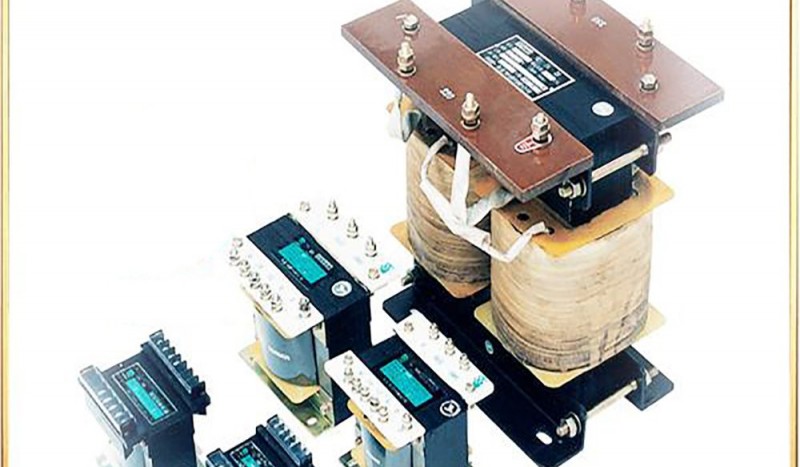

CXK Marine Transformer
CXK Marine Transformer
The CXK marine transformer is suitable for lighting, control and isolation power. It adopts the shell or heart structure is compact, fastening, good heat dissipation effect, strong load capacity, etc. It can provide with the shell (IP22, IP23) and without shell structure
1. According to standard: JB/T 5555-2013, CB/T 4388-2013, GJB 621-99, GB/T 22194-20082. The rated capacity: 15 VA - 15 KVA
3. The rated voltage: 690 v, 440 v, 400 v, 380 v, 230 v, 220 v, 127 v, 36 v, 24 v, etc.
4. Rated frequency :50 HZ or 60 HZ
| Type | Capacity (KVA) | No-load loss(W) | Load current(%) | No-load current(%) | Short circuit impedance (%) | Weight(kg) |
| CXK-25 | 25 | 1 | 3 | 50 | 12 | 1 |
| CXK-50 | 50 | 2 | 5 | 40 | 10 | 1.4 |
| CXK-100 | 100 | 3 | 10 | 40 | 10 | 2 |
| CXK-150 | 150 | 4 | 13.5 | 25 | 9 | 3.6 |
| CXK-200 | 200 | 5 | 15 | 22 | 7.5 | 4.6 |
| CXK-250 | 250 | 6 | 18 | 22 | 7.2 | 4.6 |
| CXK-300 | 300 | 7 | 20 | 30 | 6.7 | 6.2 |
| CXK-400 | 400 | 8 | 24 | 25 | 6 | 7.7 |
| CXK-500 | 500 | 16 | 25 | 18 | 3 | 9.6 |
| CXK-630 | 600 | 18 | 29 | 17 | 3 | 9.6 |
| CXK-800 | 750 | 20 | 32 | 16 | 3 | 9.6 |
| CXK-1000 | 1000 | 22 | 45 | 16 | 3 | 11 |
| CXK-1500 | 1500 | 31 | 48 | 15 | 3 | 15 |
| CXK-2000 | 2000 | 40 | 65 | 14 | 3 | 20 |
| CXK-2500 | 2500 | 48 | 70 | 11 | 3 | 24 |
| CXK-3000 | 3000 | 55 | 75 | 12 | 3 | 27 |
| CXK-4000 | 4000 | 65 | 95 | 11 | 3 | 42 |
| CXK-5000 | 5000 | 80 | 125 | 10 | 3 | 47 |
