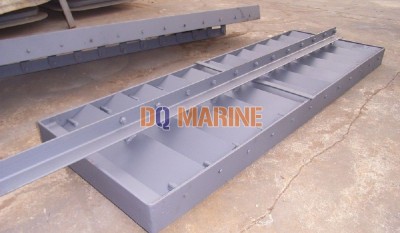

Chimney Louver:
China Chimney Louver:
Chimney Louver is suitable for the funnel or spaces of inland ships that has no weathertight requirement. It can be designed as two or three pull rod tpe according to the customer's request. It can be closable.
Standard: CB*3132-83
Operation Way: Manual, Pneumatic
Main Material:
Frame: Steel
Shutter: Steel or Aluminum
Main Size List(mm):
| Nominal Size | Opening Size | Shutter | Weight | ||
| BxL | B1xL1 | LenghtxWidthxHeight | Quantity | Steel | Aluminum |
| 400x580 | 416x680 | 396x160x4 | 5 | 28.6 | 19.5 |
| 500x460 | 516x560 | 496x160x4 | 4 | 28.3 | 18.9 |
| 500x700 | 516x800 | 6 | 37 | 20.7 | |
| 500x940 | 516x1040 | 8 | 45.6 | 25.3 | |
| 500x1180 | 516x1280 | 10 | 54.2 | 30.8 | |
| 500x1420 | 516x1520 | 12 | 62.9 | 37.2 | |
