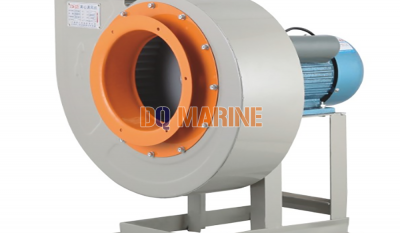

CF-11 Low-noise And Multi-plane Centrifugal Ventilator
Category:
Ventilation Equipment
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
CF-11 Low-noise And Multi-plane Centrifugal Ventilator:
CF-11 Low-noise And Multi-plane Centrifugal Ventilator Introduction

The type of CF-11 low-noise and multi-plane is designed and produced for the fast developing purification industry and noise-reducing for environmental protection. In order to achieve the performance matching optimum and better aerodynamic performance of whole ventilator, the optimized multiple-target design method has been taken into account. When designing the ventilators with various aerodynamic parameters such as the noise, efficiency and so on. With the balance strictly checked, the impellers are characterized with smooth operation, low noise, and heavy flow, small vibration and long operating life and so on.

CF-11 Technical Parameter

Machine No. Rotation Speed (r/min) Matching Motor (kw) Volume Flow (m3/h) Total Pressure (Pa) Noise (dB)≤
2A 2800 1.1 1900~2500 1200~959 68
1450 0.25 950~1350 410~294 65
2.25A 1450 2.2 2700~4250 1628~1118 72
1450 0.37 1400~2200 450~300 66
2.5A 1450 0.75 1950~2850 490~390 67
3A1 1450 1.1 2500~3800 600~400 68
3A2 1450 1.5 3500~5000 620~500 68
3.5A 1450 2.2 4995~6640 1199~998 69
960 1.1 3377~4436 526~438 65
4A 1450 4 9210~11418 1352~1081 73
960 1.5 6098~7560 593~474 68
4.5A 960 2.2 8380~9900 740~600 70
5A 960 5.5 14800~17200 680~870 82
